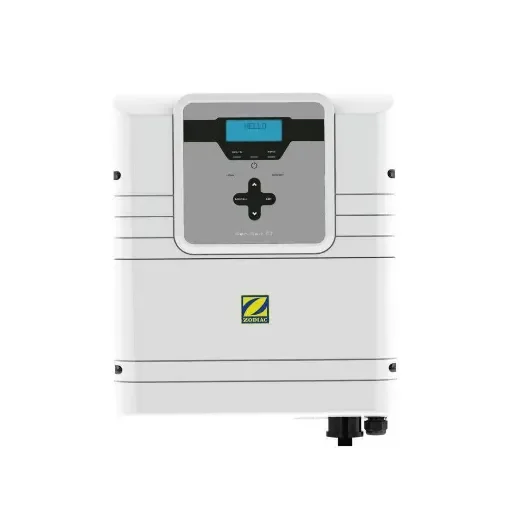

The Zodiac GenSalt OT Salt Electrolyser is a state-of-the-art salt chlorinator designed for pools up to 110 m³. It offers a modular and scalable solution, ensuring adaptability to various pool installations. The system features a patented Quick Fix installation method, allowing setup in just 10 minutes without the need for special tools. Its compact design and waterproof housing (IP43) enable installation in diverse environments, including confined spaces and areas with high humidity.
- Durability: Equipped with high-quality titanium electrodes, the GenSalt OT ensures exceptional durability, with a cell lifespan of up to 7,500 hours under optimal conditions.
- Self-Cleaning Electrodes: The system features self-cleaning electrodes through polarity inversion, reducing maintenance needs and extending the cell's operational life.
- Safety Mechanisms: Includes indicators for low salt levels and insufficient water flow, with automatic reduction in chlorine production to protect the electrode.
- Operational Modes: Offers multiple modes, including Normal, Boost (100%), Low (adjustable from 0 to 30%), and Cover (adjustable to 0 or 20%), catering to various pool usage scenarios.
- User Interface: Features a backlit 4-line LCD screen supporting 11 languages, providing clear and accessible control.
Technical Specifications:
- Power Supply: 220-240 VAC / 50-60 Hz
- Cell Lifespan: 7,500 hours (Titanium plates, SC6 ruthenium treatment)
- Maximum Power: 200 W
- Minimum Flow Rate: 5 m³/h
- Maximum Flow Rate: 18 m³/h (Bypass required for higher flow rates)
- Maximum Pressure: 2.75 bar (275 kPa)
- Maximum Water Temperature: 40°C
- Minimum Water Temperature: 5°C
- Cable Length (Box to Cell): 1.8 m
- Protection Rating: IP43
- Cell Dimensions (L x H x D): 16.5 x 22.5 x 12.5 cm
- Box Dimensions (L x H x D): 32.0 x 37.0 x 12.0 cm
Materials:
- Electrodes: High-quality titanium with SC6 ruthenium treatment
- Housing: Waterproof enclosure with IP43 rating
Compatibility Information:
- Pool Volume: Suitable for pools up to 110 m³
- Pipe Connections: Compatible with 50 mm and 63 mm pipes
- Optional Modules: Can be combined with pH Link and Dual Link modules for enhanced water treatment
Warranty: The GenSalt OT comes with an unconditional 2-year warranty, excluding consumables such as the Redox probe, buffer solutions, peristaltic hose, and non-return valve, which are guaranteed for one year.
