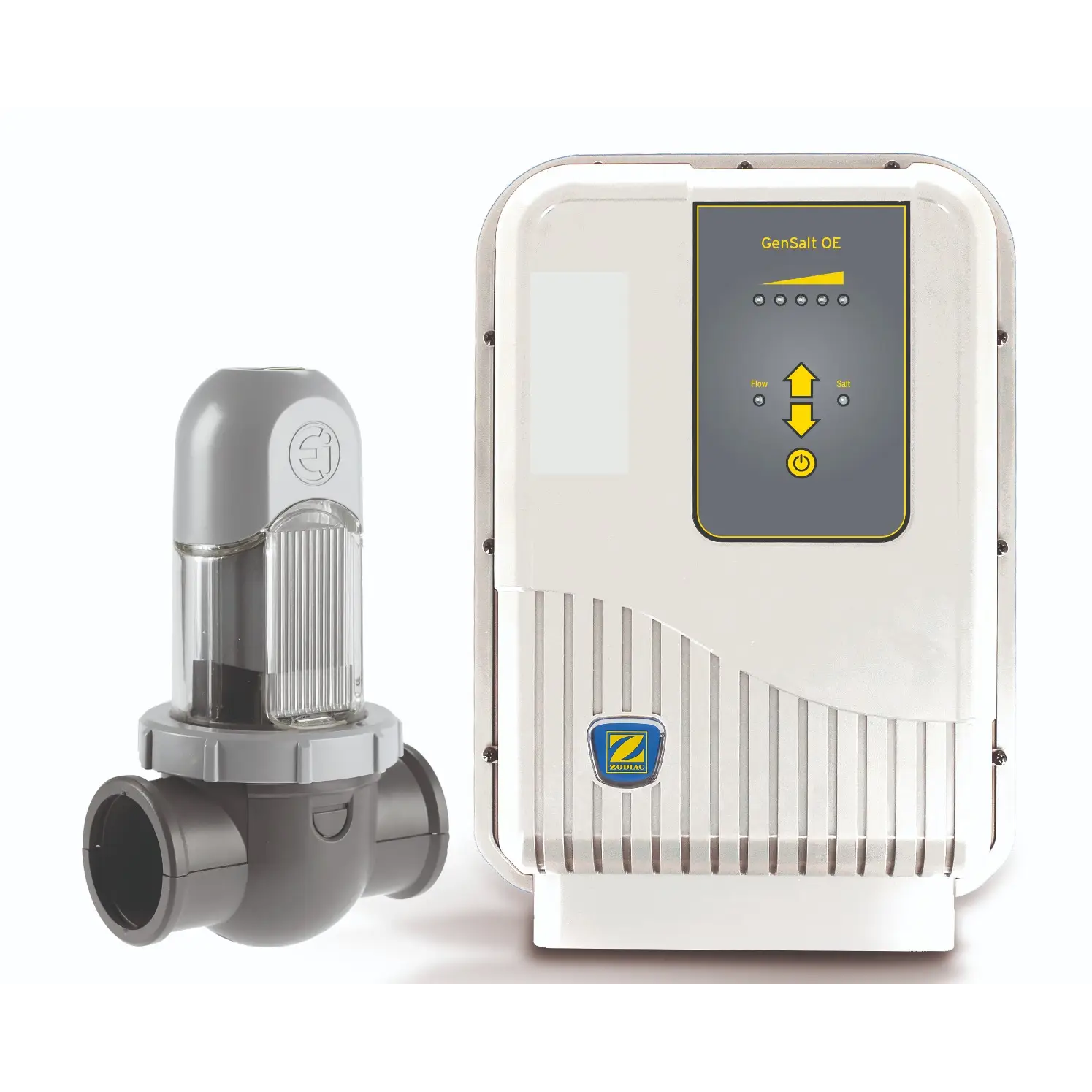

Zodiac GenSalt OE10 Salt Electrolyser - 10g/LSimple and durable
DurableOne of the most durable electrolysers in its category (up to 7,500 hours) thanks to its high-quality titanium electrode.
Suitable for all installationsThe compact cell and IPX5 waterproof housing allow the GenSalt OE platform to be installed anywhere, in confined spaces and even in humid environments.
Easy to installThe GenSalt OE platform can be installed in just 10 minutes in any environment thanks to its patented Quick Fix system.
For which pools?
Gensalt OE Gensalt OE 10 Treated water volume (temperate climate, 8h/day filtration): 40 m3Nominal chlorine production: 10 g/L Nominal output current: 2.0 A
Description: User interface: LedsClock / Timer: Linked to filtrationPolarity inversion: Yes, 5hRecommended salt level: 4g/LMinimum salt level: 3 g/L
Safety features:- "Low salt" indicator: Reduces production to protect the electrode- "No flow" indicator: Stops production until conditions are optimalCell position: Horizontal or verticalCompatible piping: DN50 mm, DN63 mm, 1 ½ " (48 mm)
Technical specificationsCell lifespan*: 7,500 h (Titanium plates, ruthenium treatment SC6)Power: 60 W Minimum flow rate (needed to purge air from the cell): 5 m³/hMaximum flow rate (limited by pressure losses in the pipe): 18 m³/h (by-pass required beyond)Flow detection: Gas sensorMaximum pressure allowed in the cell: 2.75 bar (KPa)Maximum water temperature: 40 °CMinimum water temperature: 5 °CLength of cable between box and cell: 1.8 mProtection rating: IPX5Dimensions of the cell (l x h x d): 16.5 x 22.5 x 12.5 cmDimensions of the box (l x h x d): 28.5 x 40.5 x 12.5 cmPower supply: 50 Hz 220-240 VAC (moulded plug power cable)* under good operating conditions
Warranty: 2 years
Accessories included in the pack:- Installation kit
