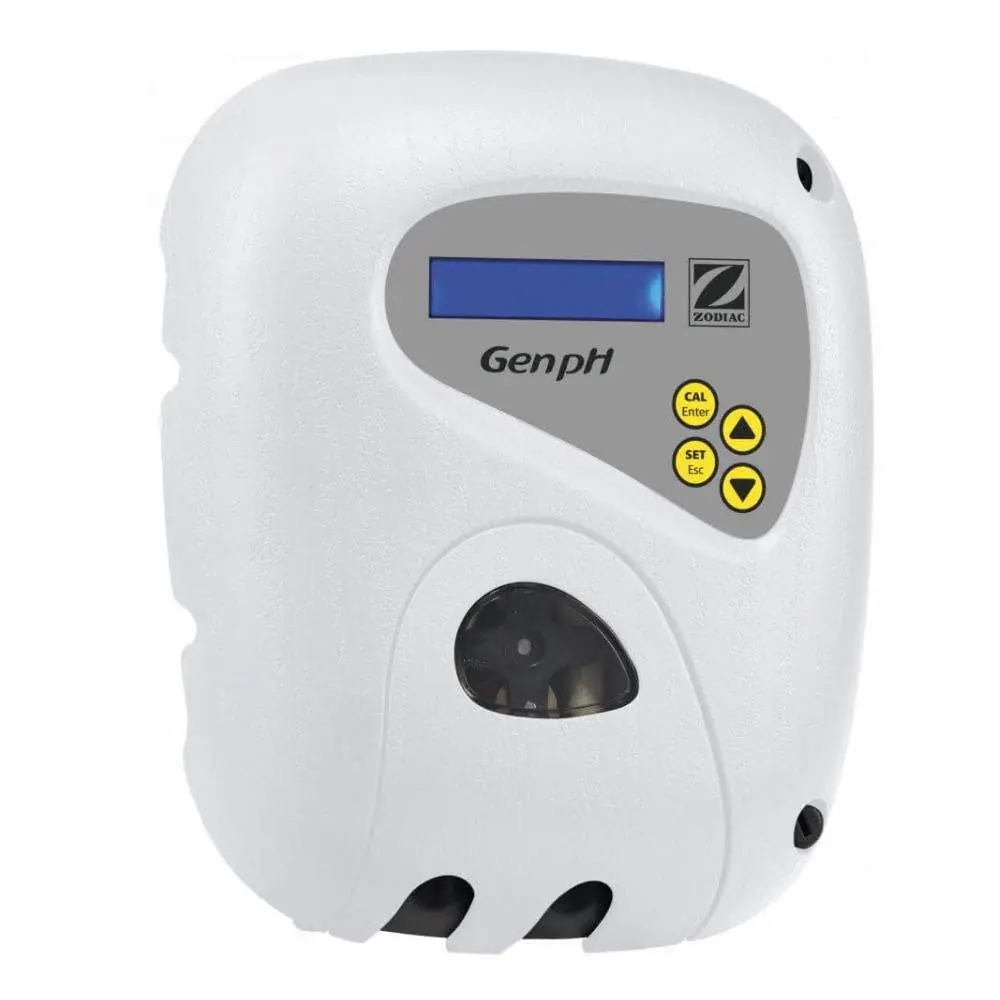

The Zodiac GenpH pH Regulator is an autonomous and secure system designed to maintain optimal pH levels in swimming pools up to 150 m³. It ensures precise and automated pH correction, enhancing water quality and swimmer comfort.
- Automatic pH Regulation: Continuously monitors and adjusts the pool's pH without manual intervention.
- Accurate Dosing: Utilizes adaptive dosing technology to inject the precise amount of pH corrector, minimizing chemical usage.
- Anti-Overdose Protection: Features a safety system that prevents overdosage, ensuring optimal water balance.
- Easy Installation and Configuration: Equipped with a backlit LCD screen for straightforward setup and operation.
- Alkalinity Compensation: Automatically adjusts treatment cycles based on water alkalinity (TAC) for optimized pH correction.
Technical Specifications
- Maximum Treated Water Volume: 150 m³
- Dosing Type: Acid or alkaline
- User Interface: Backlit LCD screen (1 line)
- Languages Supported: 6 (French, English, Spanish, German, Italian, Dutch)
- Calibration: Semi-automatic in 1 or 2 steps (buffer solution kit provided)
- Factory Set Point: pH = 7.4
- Safety Features: Overdosage safety "OFA" on 3 levels, adjustable (0 to 6 hours, default = 4 hours); Level sensor for the corrector product container (on anti-fume suction pipe)
- Probe Position: Vertical
- Probe Type: Combined probe, double junction and double porous, epoxy body Ø12 mm
- Measurement Range: 0.0 - 14.0 pH
- Measurement Accuracy: 0.1 pH
- Probe Tolerances: 0-60 °C, water speed ≤ 2 m/s
- Maximum Back Pressure (Injection Point): 1.5 bar
- Peristaltic Pump Flow Rate (pH): 1.5 L/h
- Support Clamps: On DN50 mm (original) or DN63 mm (optional accessory) pipes
- Protection Index: IP65
- Dimensions (L x H x D): 19.5 x 23.6 x 8.5 cm
- Power Supply: 50 Hz 220-240 VAC
Materials
- Probe: Epoxy body
- Suction Pipe: Anti-fume design
Compatibility Information
- Pool Types: Suitable for all types of swimming pools
- Water Treatments: Compatible with all types of water treatment, both manual and automatic
Additional Details
- Warranty: 2 years
- Accessories Included: pH Probe, Wall mounting kit, Buffer solution kit, Piping installation kit
