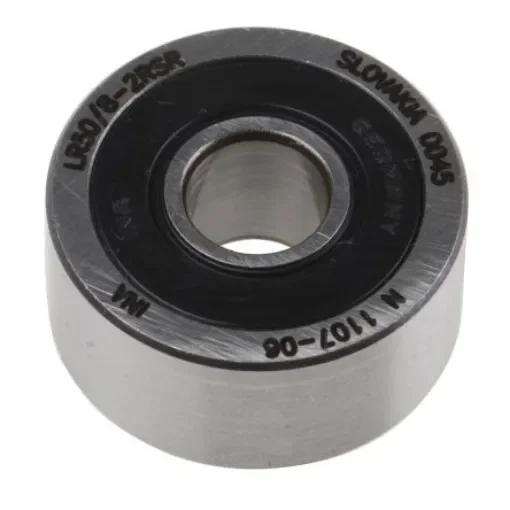

Yoke Track Roller LR50/8-2RSR, 8mm ID, 24mm OD

Roller Diameter = 24mm
Roller Length = 11mm
Type = Yoke
Bore Size = 8mm
Static Load Rating = 2390N
Dynamic Load Rating = 4300N

Ball bearing track rollers are self-retaining, single or double row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions. The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided. Ball bearing track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.Outside surface profile of the outer ring Yoke type track rollers Anti-corrosion protection Sealing Lubrication Stud type track rollers Without eccentric collar With eccentric collar Sealing Lubrication Track rollers with plastic outer tyre Outside surface profile of the outer ring Maximum radial load Sealing Lubrication Operating temperature Suffixes Other products Enquiries
