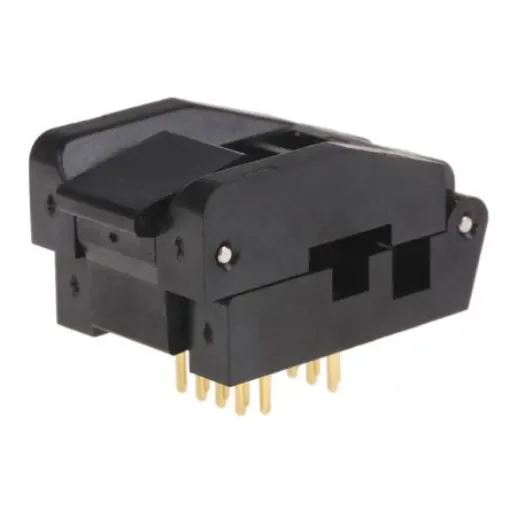

Yamaichi 1.27mm Pitch 16 Way SMT SOP Test IC Socket - IC51-0162-1035
Reliable 16-way SMT test socket for efficient IC testing.
Manufacturer part number: IC51-0162-1035
GTIN: 5059045462200
Package Type = SOP
Gender = Female
Number of Contacts = 16
Number of Rows = 2
Pitch = 1.27mm
Body Orientation = Straight
Contact Material = Beryllium Copper
Contact Plating = Gold over Nickel
Socket Mounting Type = Surface Mount
Termination Method = Solder
Housing Material = PEI
SOP Test Sockets Clamshell. Clamshell test sockets for SOP's (small outline packages) Spring loaded hinged lid latches to retain ICs Easy, repeatable access for test purposes Full performance material and electrical specification Body material glass filled Polyetherimide (PEI) Contact material Beryllium Copper Contact plating Gold Insulation Resistance 1000 MO (At 500 Vdc) Contact resistance 30mO (at 10mA) Operating temperature -55°C to 170°C Durability 10000 insertions
