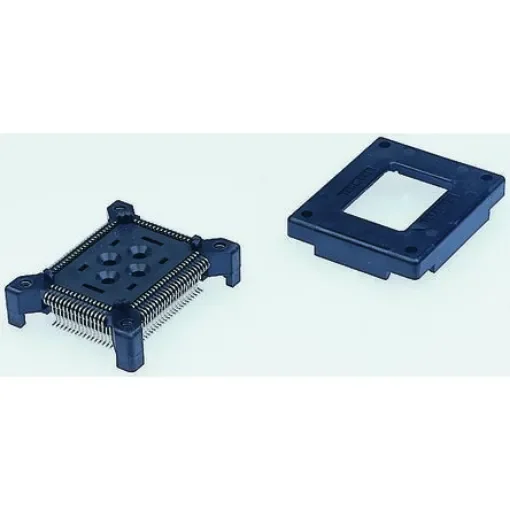

Yamaichi 0.5mm Pitch 100 Way SMT QFP Prototyping IC Socket - IC149-100-025-B5

Prototyping QFP Sockets. This QFP socket has been designed for late prototyping or early production applications, allowing up to 20 insertion cycles of the device without risk of contact degradation or lead damage. The footprint of the socket mirrors that of the device, enabling the socket to be dispensed with favour of direct soldering, without any further changes to the PCB design. Insulator is high temperature thermoplastic. Contacts are copper alloy with tin over nickel plating. Contact resistance 30mO (at 10mA) Current rated 500mA per contact Flammability UL 94 V-0 Operating temperature -25C to +85C Temperature for reflow soldering 220C for 60 seconds Insulation resistance 500mO (at 150Vdc) Surface Mount
