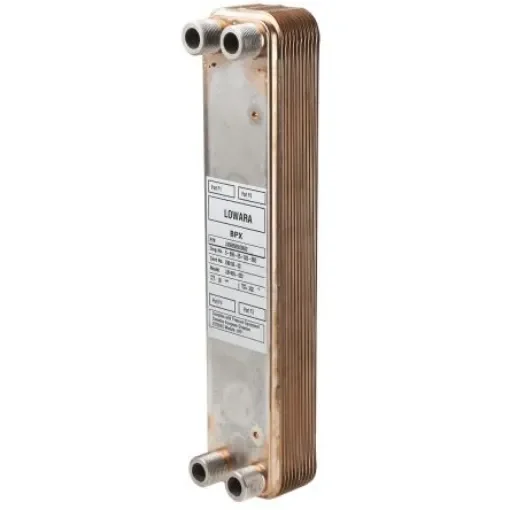

Xylem Liquid Heat Exchanger, 397.5 x 80.7 x 24.1mm - LN569505020002

Dimensions = 397.5 x 80.7 x 24.1mm
Number of Cooling Elements = 20
Height = 397.5mm
Series = BP405
Radiator Material = Copper
Colour = Silver
Depth = 24.1mm
Maximum Working Temperature = +232°C
Minimum Working Temperature = -190°C
Width = 80.7mm

Brazed Plate Heat Exchangers. Lowara brazed heat exchangers are ideal for residential and light commercial hydronic systems as they provide maximum heat dissipation from a compact, lightweight heat exchanger. They offer a high level of thermal efficiency and durability with a corrugated, compact plate design. Features and Benefits. Approved according to pressure equipment PED 97-23-EC. Stainless steel 316L plates, copper brazed material. Up to 50.40 l/sec and 32.52 m² of surface area. Pressures up to 30 bar. Connections from inch to 4 inches. Product Application Information. Radiant floors. Domestic hot water. Pool heating. HVAC. Solar heating. District heating. Domestic/commercial boilers
