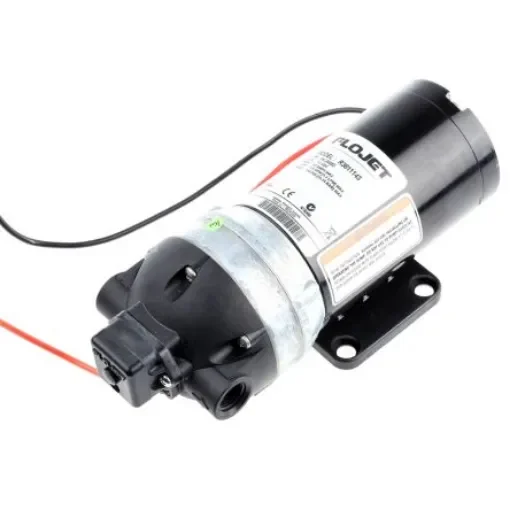

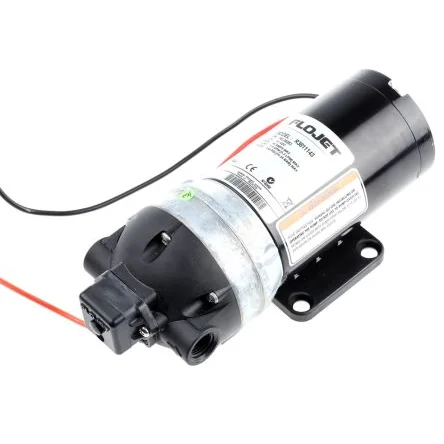

Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 5.5L/min, 10.5 bar, 12 V - R3811143A

Pump Type = Diaphragm
Drive Type = Electric
Maximum Flow Rate = 5.5L/min
Maximum Head = 105m
Maximum Working Pressure = 10.5 bar
Input Connection = 3/8 in NPT
Output Connection = 3/8 in NPT
Series = R381
Maximum Fluid Temperature = +60°C
Body Material = Glass Fibre Reinforced Nylon
Supply Voltage = 12 V
Input Power = 108W
Input Connection Size = 3/8in

Xylem Flojet Positive Displacement PumpThe Xylem Flojet heavy-duty diaphragm positive displacement pump is suitable for many applications including chemical spraying, misting and filtration systems. Its maximum flow rate is 5.5L/min. Caution: Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere.Features and BenefitsThe supply voltage rating is 12V Input power is 108W Maximum working pressure is 10.5bar Maximum Fluid temperature is 60°C Self-priming capability up to 2m Can be located above the supply tank 3-chamber diaphragm pump Corrosion-resistant liquid contact parts Intermittent duty Can running dry for extended periods of time without damage Sealed pressure switch and motor Built-in backflow preventerCertificationsCE certified NSF approved
