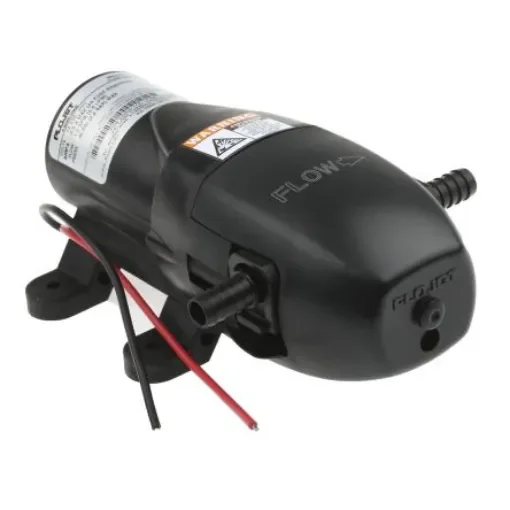

Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 3.8L/min, 2.5 bar, 12 V dc - RLFP122202D

Manufacturer: Xylem Flojet
Compact diaphragm pump delivering 3.8L/min flow, perfect for water and light chemicals.
Manufacturer part number: RLFP122202D
€156.77
i h
Ships to: France
Xylem Flojet Positive Displacement PumpThe Xylem Flojet ultra-compact diaphragm positive displacement pump uses a unique duplex design to deliver flow and pressure comparable to much larger pumps. Its maximum flow rate is 3.8L/min. The built-in pressure switch automatically starts and stops the pump when the discharge valve is opened and closed. This pump is suitable for water and light water-based chemicals. Caution: Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere.Features and BenefitsThe supply voltage rating is 12VDC Input power is 30W Maximum working pressure is 2.5bar Maximum Fluid temperature is 43°C Self-priming capability up to 0.7m Can be located above the liquid level Duplex diaphragm design allows extended dry running without damage Built-in thermal overload protection Low amp draw for battery-powered applications Can be situated above the liquid levelCertificationsCE certified NSF approved IPX4 rated
