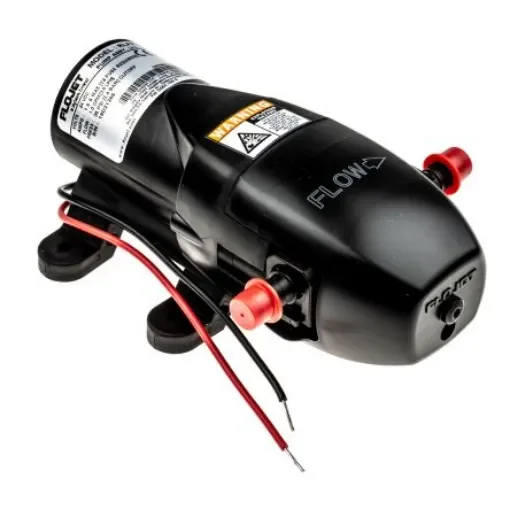

Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 3.8L/min, 2.4 bar, 24 V dc - RLFP222202D
Compact diaphragm pump with 3.8L/min flow rate, perfect for water and light chemicals.
Manufacturer part number: RLFP222202D
Xylem Flojet Positive Displacement PumpThe Xylem Flojet ultra-compact diaphragm positive displacement pump uses a unique duplex design to deliver flow and pressure comparable to much larger pumps. Its maximum flow rate is 3.8L/min. The built-in pressure switch automatically starts and stops the pump when the discharge valve is opened and closed. This pump is suitable for water and light water-based chemicals. Caution: Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere.Features and BenefitsThe supply voltage rating is 24VDC Input power is 30W Maximum working pressure is 2.4bar Maximum Fluid temperature is 43°C Self-priming capability up to 0.7m The pump may be located above the liquid level Duplex diaphragm design allows extended dry running without damage Built-in thermal overload protection Low amp draw for battery-powered applications Pumps can be situated above the liquid levelCertificationsCE certified NSF approved IPX4 rated
