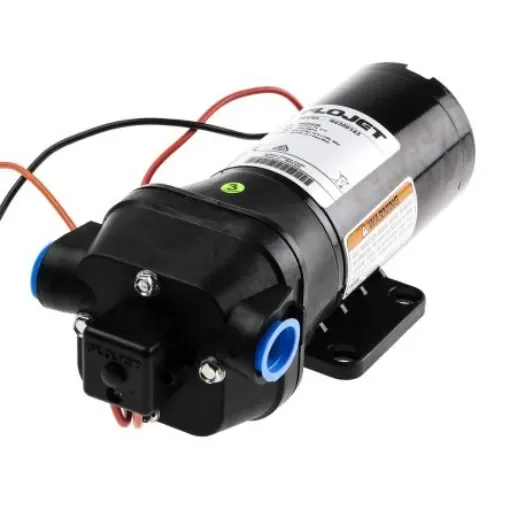

Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 19L/min, 3.1 bar, 12 V dc - R4300143A
Compact diaphragm pump with 19L/min flow rate, perfect for water and light chemicals.
Manufacturer part number: R4300143A
Pump Type = Diaphragm
Drive Type = Electric
Maximum Flow Rate = 19L/min
Maximum Working Pressure = 3.1 bar
Input Connection = 3/4 in Hose Barb
Output Connection = 3/4 in Hose Barb
IP Rating = IP44
Series = R4300
Body Material = PP
Supply Voltage = 12 V dc
Wetted Materials = Buna, Elastomer, PP
Input Thread Standard or Connection Type = Hose Barbin
Xylem Flojet Positive Displacement PumpThe Xylem Flojet compact quad diaphragm positive displacement pump is suitable for water and light water-based chemicals. Its maximum flow rate is 19L/min. It has a built-in pressure switch that automatically starts and stops the pump when the discharge valve is opened and closed. Caution: Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere.Features and BenefitsThe supply voltage rating is 12VDC Maximum working pressure is 3.1bar Maximum Fluid temperature is 54°C Self-priming capability up to 1.5m Can be located above the liquid level Compact design and plug-in port fittings make installation easy Quad diaphragm design eliminates troublesome shaft seal No metal contact with liquid being pumped Powerful, permanent magnet motor with a low current draw and long life brushesCertificationsCE certified NSF approved
