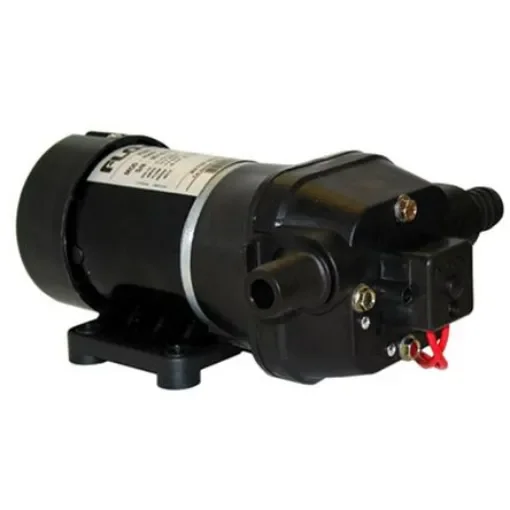

Xylem Flojet Diaphragm Automatically Operated Operated Positive Displacement Pump, 3.7 g/min, 14L/min, 3.1 bar, 24 V dc - R4300342A
High-performance diaphragm pump with automatic operation and 3.7 GPM flow rate.
Manufacturer part number: R4300342A
Pump Type = Diaphragm
Drive Type = Automatically Operated
Maximum Flow Rate = 3.7 g/min, 14L/min
Maximum Working Pressure = 3.1 bar
Input Connection = 1/2 in Hose Barb
Output Connection = 1/2 in Hose Barb
Series = QUAD 4000
Maximum Fluid Temperature = +54°C
Body Material = PP
Supply Voltage = 24 V dc
Wetted Materials = Elastomer, Polypropylene (Housing)
Output Thread Standard or Connection Type = Hose Barbin
Flojet developed the Quad pumps to deliver higher flows up to 5 GPM (18.9 LPM) using a four-piston design with excellent self-priming capability.Built-in pressure switch automatically starts and stops pump when discharge valve opens and closes. Compact design and plug-in port fittings make installation easy. Can run dry without damage and handle liquids up to 130°F (54°C). Excellent self-priming capability,pump may be located above the liquid level.
