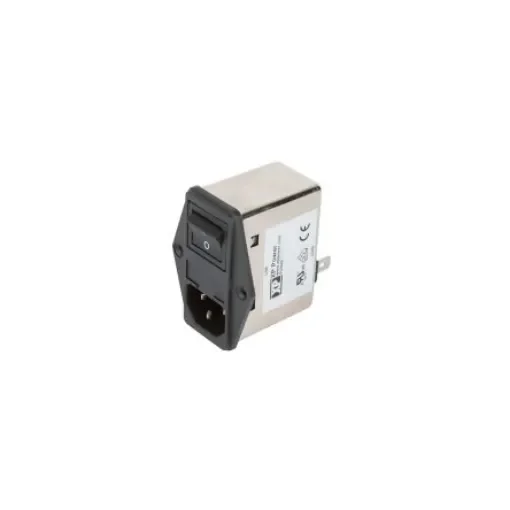

XP Power 1A, 264 V ac Male Screw IEC Inlet Filter 2 Pole FGSMA01BFR, Faston 1 Fuse
The XP Power Male Screw IEC Inlet Filter provides excellent EMI attenuation for medical applications.
Manufacturer part number: FGSMA01BFR
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Gender = Male
Number of Fuses = 1
Fuse Size = 5 x 20mm
Switch Type = 2 Pole
Termination Method = Faston
Current Rating = 1A
Voltage Rating = 264 V ac
Mounting Type = Screw
Operating Frequency = 400Hz
Width = 49.5mm
Depth = 64mm
Dimensions = 49.5 x 64 x 65.2mm
Combining a double pole switch, front accessible (when the mains connector is disconnected) dual fuse holder and a low earth leakage filtered inlet in a compact single housing, the FGSM is designed for medical applications. When fitted to mains powered equipment, they provide excellent attenuation to conducted electro-magnetic interference from the mains supply, whilst reducing any conducted emissions from within the equipment onto the mains supply. Suitable for class I appliances, all models feature a shielded metal body, and are fitted with a bleed resistor to safely discharge the filter capacitors when power is disconnected. They feature a wide operating temperature range of -40°C to +110°C with full power operation up to +50°C.Filtered Inlet Dual Fuse Input Switch Screw Mount Compact Design Medical Application 1, 2, 4, 6 & 10A Rating 6.3 x 0.8mm Faston Terminals Bleed Resistor Shielded Metal Body Wide Operating Temperature Range 3 Year Warranty
