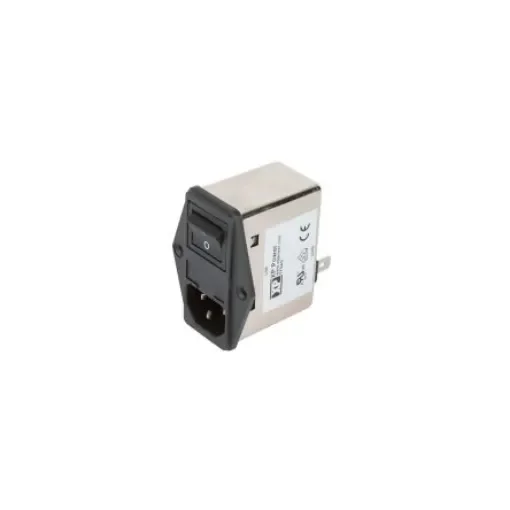

XP Power 10A, 264 V ac Male Screw IEC Inlet Filter 2 Pole FFSAS10BFR, Faston 1 Fuse
The XP Power 10A IEC inlet filter ensures low earth leakage and EMI attenuation for medical equipment.
Manufacturer part number: FFSAS10BFR
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Gender = Male
Number of Fuses = 1
Fuse Size = 5 x 20mm
Switch Type = 2 Pole
Termination Method = Faston
Current Rating = 10A
Voltage Rating = 264 V ac
Mounting Type = Screw
Operating Frequency = 400Hz
Width = 49.5mm
Depth = 64mm
Dimensions = 49.5 x 64 x 65.2mm
The FDMM has an inlet with a front accessible (when the mains connector is disconnected) dual fuse holder , combined with a low earth leakage medical IEC inlet filter in a compact single housing. It is suitable for mains powered medical equipment where dual fusing and low earth leakage current is required. Providing excellent attenuation to conducted electro-magnetic interference from the mains supply, whilst reducing any conducted emissions from within the equipment onto the mains supply. Suitable for class I appliances, all models feature a shielded metal body, and are fitted with a bleed resistor to safely discharge the filter capacitors when power is disconnected. They feature a wide operating temperature range of -40°C to +110°C with full power operation up to +50°C.Filtered Inlet Single Fuse Input Switch Screw Mount Compact Design ITE Versions 1, 2, 4, 6 & 10A Rating 6.3 x 0.8mm Faston Terminals Bleed Resistor Shielded Metal Body Wide Operating Temperature Range 3 Year Warranty
