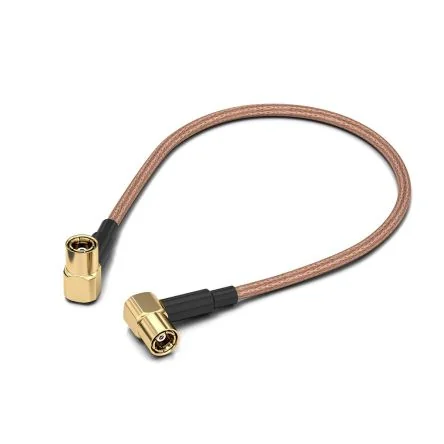

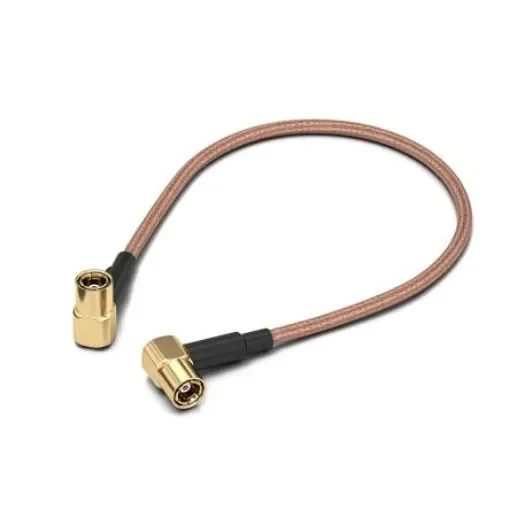

Wurth Elektronik WR-CXASY Series Male SMB to Male SMB, 152.4mm, RG316/U Coaxial, Terminated50 O - 65502910515301
High-quality RG316/U coaxial cable with male SMB connectors for reliable performance.
Manufacturer part number: 65502910515301
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Terminated/Unterminated = Terminated
Connector 2 = SMB
Connector 1 Gender = Male
Connector 2 Gender = Male
Connector 1 Orientation = Right Angle
Connector 2 Orientation = Right Angle
Outer Diameter = 2.49mm
Characteristic Impedance = 50 O
Attenuation = 0.78 dB
Length = 152.4mm
Minimum Operating Temperature = -55°C
The Wurth Elektronik RG-316/U flexible coaxial cable has length up to 152.4 mm. The cable has braided shielding. It has 4 GHz operating frequency range.Operating temperature range is from -65 °C to +165 °C RoHS compliant REACh compliant
