Key Features:

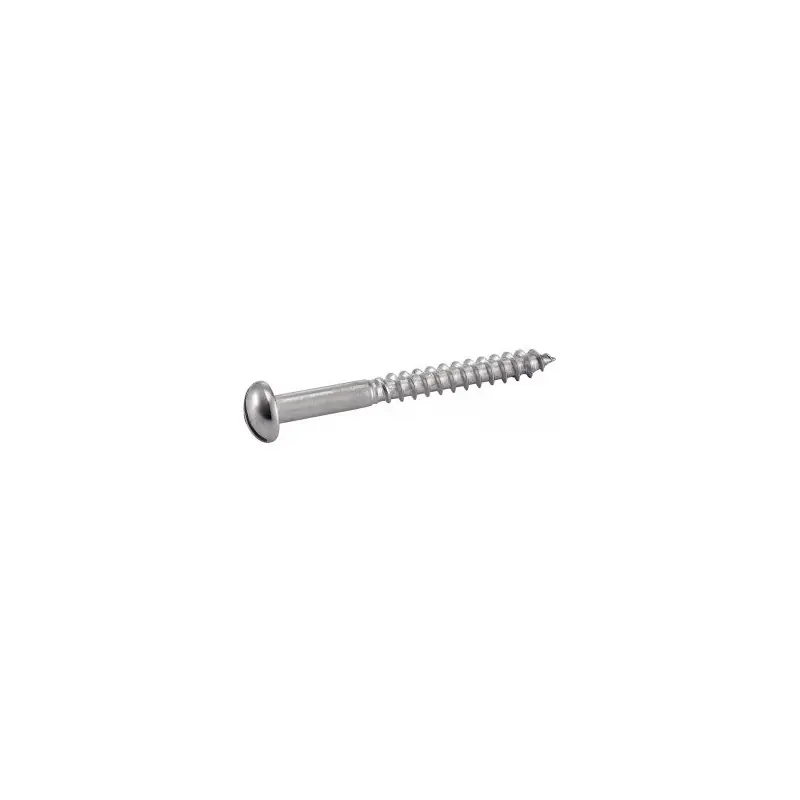

Wood screw with round head and slotted drive.
Made of stainless steel A4 (marine grade 316) for enhanced corrosion resistance.
Meets DIN 96 standards (NFE 25-606, UNI 701) for professional quality.
Available in various diameters and lengths to suit different applications.
Technical Specifications:
- Diameter (d): 2.5 mm, 3 mm, 3.5 mm, 4 mm, 5 mm, 6 mm.
- Head Diameter (dk): 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm.
- Head Height (k): 1.7 mm, 2.1 mm, 2.4 mm, 2.8 mm, 3.5 mm, 4.2 mm.
- Thread Length (t): 0.85 mm, 1.05 mm, 1.2 mm, 1.4 mm, 1.75 mm, 2.1 mm.
- Thread Pitch (n): 0.6 mm, 0.8 mm, 0.8 mm, 1 mm, 1.2 mm, 1.6 mm.
Materials:
Stainless Steel A4 (marine grade 316) for superior corrosion resistance, especially in marine and coastal environments.
Dimensions:
Available in multiple diameters and lengths as specified above.
Compatibility Information:
Suitable for use in wood applications requiring enhanced corrosion resistance, such as marine environments, coastal areas, and structures exposed to saltwater or acidic conditions.
Additional Details:
The slotted drive allows for a secure grip without deforming the wood during installation.
Countersunk slotted wood screws enable drilling into the wood without crushing it.
Stainless Steel A4 is widely used in industries like cellulose, food, and shipbuilding due to its acid-resistant properties.
