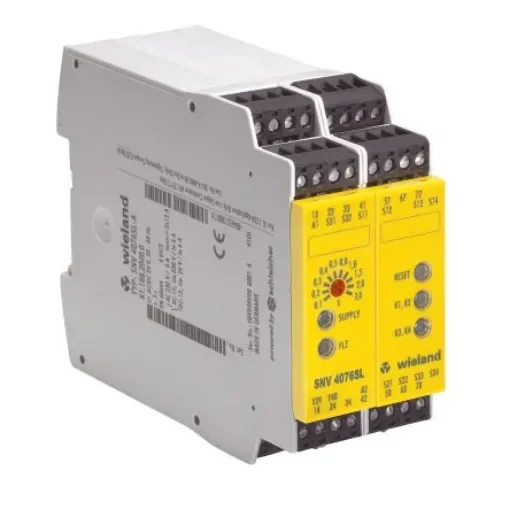

Wieland safeRELAY SNV 4076SL Safety Monitoring Safety Relay, 24V dc, Dual-Channel, 7 Safety Contacts - R1.188.2070.0

Supply Voltage = 24V dc
Number of Channels = 2
Safety Contacts = 7
Function = Safety Monitoring
Reset Method = Automatic, Manual, Monitored
Range = safeRELAY
Safety Category ISO 13849-1 = 4
Terminal Type = Screw
Series = SNV 4076SLmm
Length = 45mm

SNV 4076SL Safety Relay with Timed Delay. Suitable for applications that require a safe timing sequence Meet all requirements of the currently valid safety standards EN 62061, EN ISO 13849-1, Cat 4, SIL 3, PL e Can be used as emergency stop and safety gate monitor Single-channel or two-channel activation through contacts or semiconductors Automatic and manual reset with reset button monitoring 3 immediate enables, 3 enables OFF-delayed, without re-triggering Controlled stop and time monitored door lock Cross monitoring
