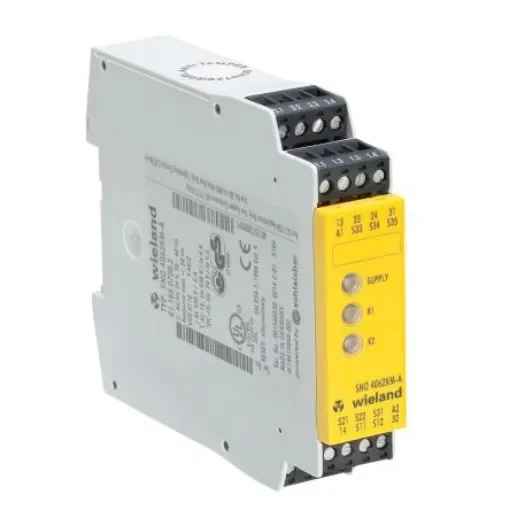

Wieland safeRELAY SNO 4062KM Safety Monitoring Safety Relay, 24V ac/dc, Dual-Channel, 2 Safety Contacts - R1.188.0720.2

Supply Voltage = 24V ac/dc
Number of Channels = 2
Safety Contacts = 2
Function = Safety Monitoring
Auxiliary Contacts = 1
Reset Method = Monitored
Range = safeRELAY
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
Terminal Type = Screw
Width = 114mm
Performance Level = emm

Stock no. ; 321-9077 321-9077 has input de-bouncing through "Monoflop" functionality and sensors for fast tactile applications. Incorporates soft reset functionality allowing the device to be reset locally upon encountering a short interrupt. SNO 4062K Safety Relay, Dual Channel. LED indication for supply voltage and safety circuits Automatic restart function available Contact current rating: 6A Conform to BS EN 60204 Part 1 1993; EN 954-1; IEC 204-1; VDE 0113 Dimensions (mm): H 96.5, W 22.5, L 114
