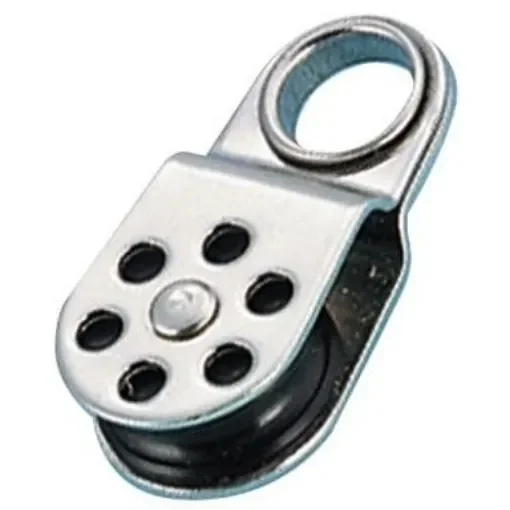

The Wichard Stainless Steel Single Block Sheave 19mm with Eye is a high-quality pulley designed for light sailing applications. Crafted from grade 316L stainless steel, it offers exceptional durability and resistance to corrosion, making it ideal for marine environments.
- Sheave Diameter: 19 mm
- Working Load: 200 kg
- Breaking Load: 500 kg
- Weight: 12 g
- Length: 38 mm
- Width: 19 mm
- Thickness: 8 mm
- Material: Grade 316L stainless steel with composite sheave
- Attachment: Eye for easy installation
Technical Specifications
- Sheave Material: Composite
- Bearing Type: Plain bearing
- Max Rope Diameter: 6 mm
- Applications: Suitable for dinghies and catamarans, including uses such as boom vang, trapeze retriever systems, cunningham, outhaul, and control lines. Also applicable for low-load applications on larger yachts.
Materials
- Fastener: Stainless steel
- Sheave: Composite
- Sheave Protection Flanges: Plastic
Dimensions
- Height: 38 mm
- Width: 19 mm
- Thickness: 8 mm
