Key Features:
- Forged from AISI 316L stainless steel for enhanced durability and corrosion resistance.
- Features a neat finish with a sliding thread for secure attachment.
- Designed to prevent accidental unscrewing, ensuring safety during use.
- Suitable for applications requiring a larger range of motion, allowing attachment of multiple lines or cables.
- CE marked, indicating compliance with European safety standards.
Technical Specifications:
- Material: AISI 316L stainless steel
- Finish: Neat finish with sliding thread

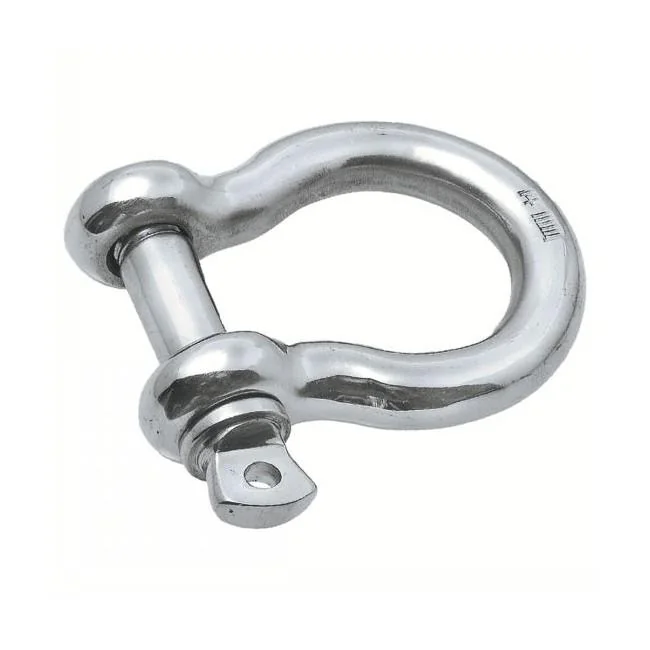

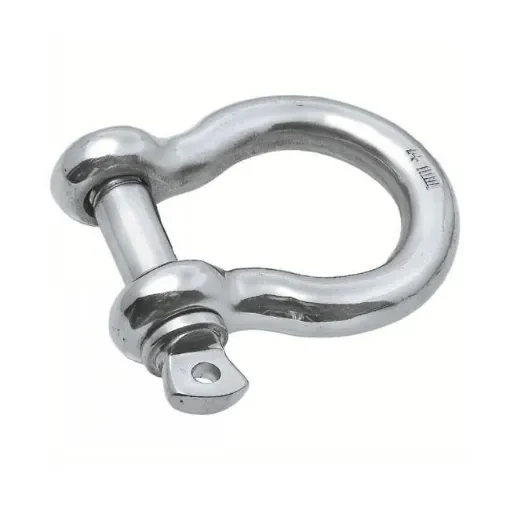

- Type: Lyre shackle
- Size: 5 mm
- Working Load Limit (WLL): 400 kg
- Breaking Load: 1,000 kg
- Weight: 17 grams
- Dimensions:
- A (Width): 23 mm
- B (Height): 10 mm
- C (Length): 5 mm
- D (Pin Diameter): 10 mm
- E (Thread Length): 5 mm
- M (Thread Pitch): 4 mm
Materials: Constructed from AISI 316L stainless steel, offering superior resistance to corrosion, especially in marine environments.
Compatibility Information: Ideal for marine applications, particularly for attaching multiple lines or cables where a greater range of motion is required.
Additional Details:
- The sliding thread mechanism ensures a secure and tight fit, reducing the risk of accidental loosening.
- The CE marking signifies that the product meets European Union safety, health, and environmental protection standards.
