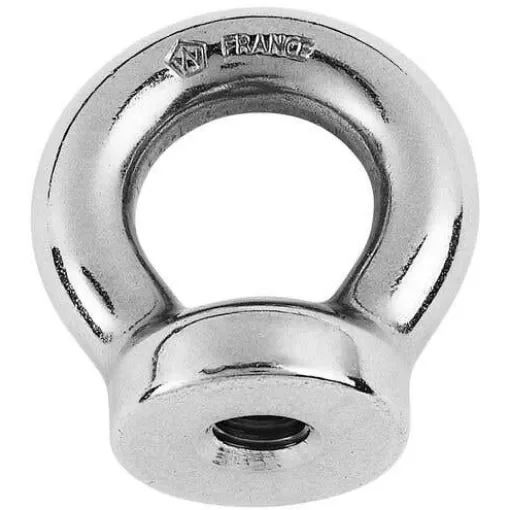

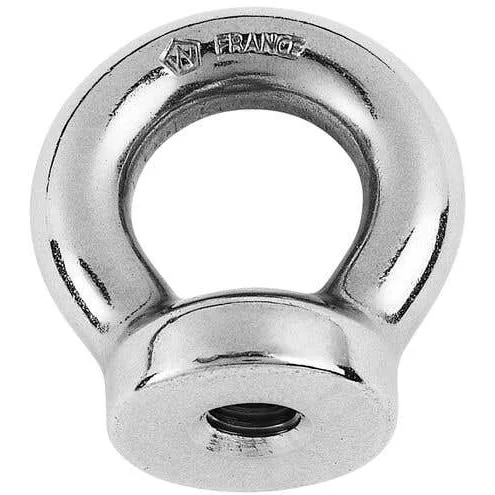

The Wichard Stainless Steel Eye Nut is a single-piece forged fastening component designed for various marine applications, including towing and waterskiing line attachments. Manufactured from 316L stainless steel, it offers exceptional corrosion resistance and durability.
- Single-piece forged construction for enhanced strength
- Made from 316L stainless steel for superior corrosion resistance
- Available in multiple sizes to accommodate different applications
- Suitable for various fastening applications, towing, and waterskiing line attachments
Technical Specifications
- Materials: 316L stainless steel
- Breaking Load: Varies by size; for example, the 6mm Eye Nut has a breaking load of 1,500 kg
- Weight: Varies by size; for example, the 6mm Eye Nut weighs 22 g
Dimensions
- 6mm Eye Nut (M6 x 100): Thread Size: M6 x 100, Eye Diameter: 13 mm, Overall Length: 27 mm, Width: 6 mm, Height: 17 mm
- 8mm Eye Nut (M8 x 125): Thread Size: M8 x 125, Eye Diameter: 17 mm, Overall Length: 36 mm, Width: 8 mm, Height: 22 mm
- 10mm Eye Nut (M10 x 150): Thread Size: M10 x 150, Eye Diameter: 22 mm, Overall Length: 46 mm, Width: 10 mm, Height: 28 mm
- 12mm Eye Nut (M12 x 175): Thread Size: M12 x 175, Eye Diameter: 27 mm, Overall Length: 56 mm, Width: 12 mm, Height: 34 mm
Compatibility Information
These eye nuts are compatible with corresponding threaded rods and are suitable for various marine applications, including towing and waterskiing line attachments.
