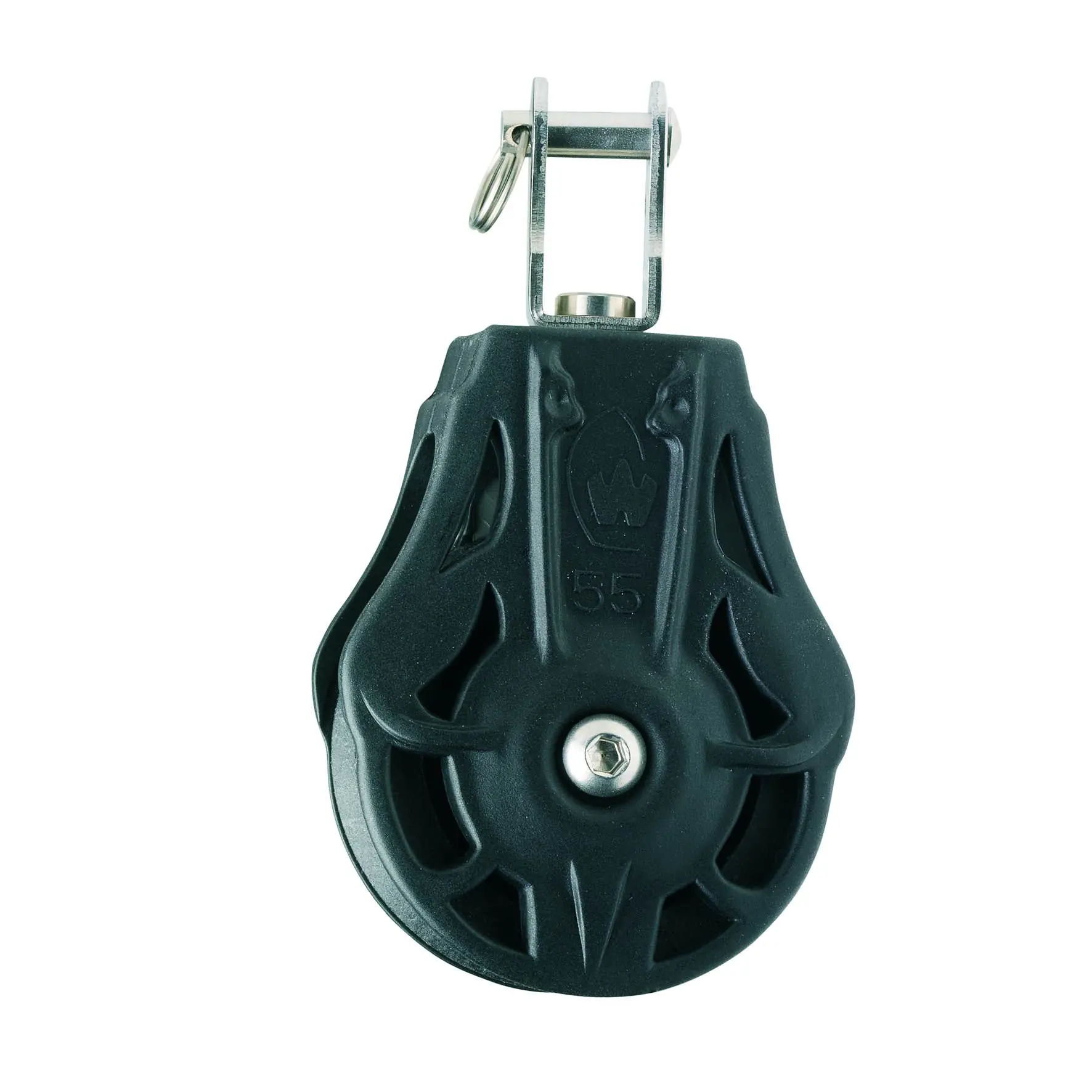

The Wichard Single Plain Bearing Block with a 55 mm sheave is designed for static operations requiring high load resistance. This block features a swivel head, allowing for versatile attachment options.
- High Load Capacity: Designed to withstand heavy loads, making it suitable for demanding applications.
- Swivel Head: Offers a wide range of attachment possibilities, enhancing flexibility in various setups.
- Sheave Protection: The sheave is safeguarded by light cheeks, ensuring durability and longevity.
- Stainless Steel Axle: Load transfer is facilitated through a stainless steel axle, providing strength and corrosion resistance.
Technical Specifications
- Sheave Diameter: 55 mm
- Maximum Rope Diameter: 12 mm
- Length: 119 mm
- Width: 63 mm
- Thickness: 29 mm
- Shackle Diameter: 6 mm
- Working Load: 720 kg
- Breaking Load: 1500 kg
- Weight: 179 g
Materials
- Head Configuration: Grade 316L stainless steel
- Load Straps: Grade 316L stainless steel
- Cheeks: POM (Polyoxymethylene)
- Sheave: Composite material
Compatibility Information
This block is compatible with ropes up to 12 mm in diameter, making it suitable for various marine applications where high load resistance is required.
