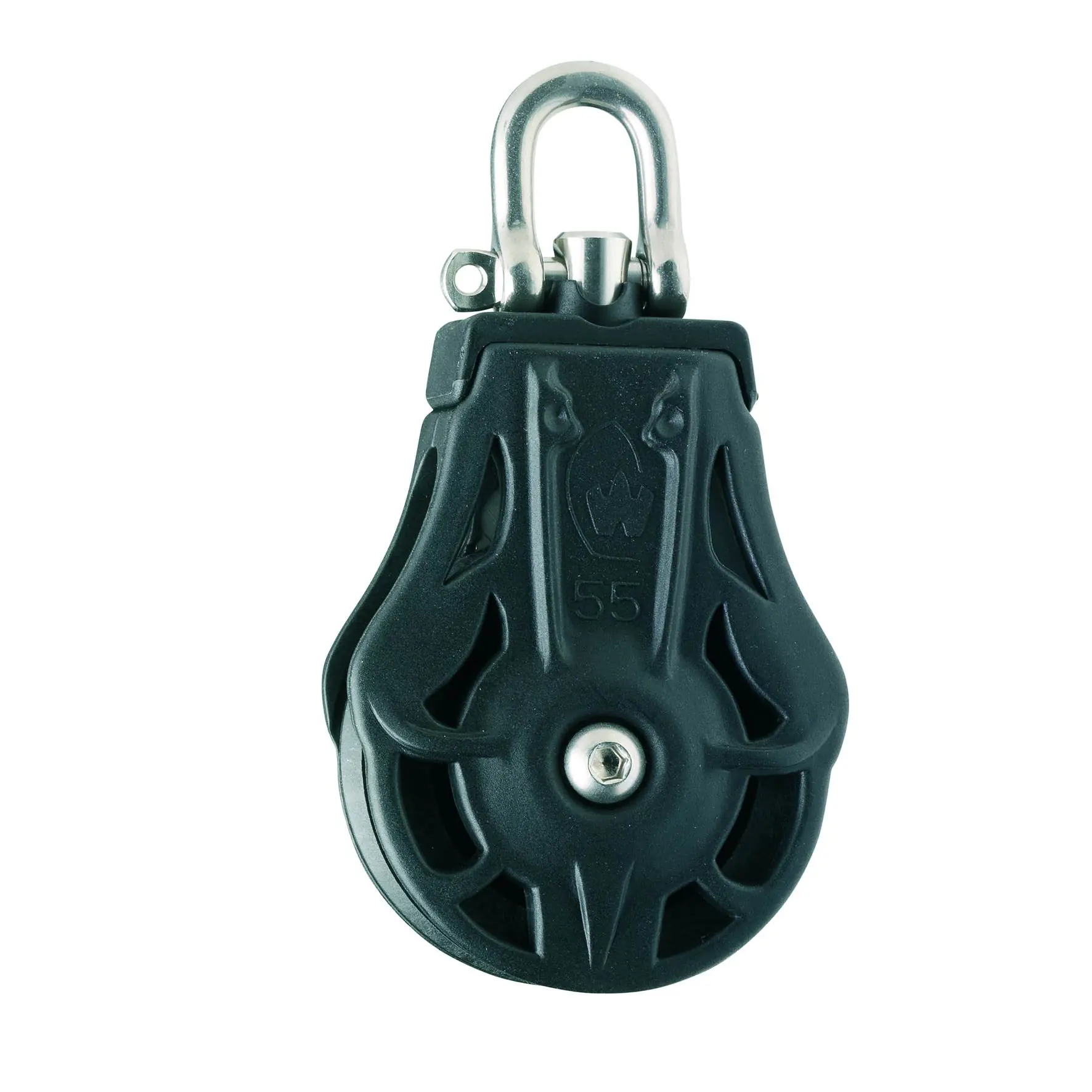

The Wichard Single Plain Bearing Block Sheave 45mm with Swivel Head is a high-quality marine pulley designed for static maneuvers involving heavy loads. Its robust construction and versatile design make it an essential component for various boating applications.
- High Load Capacity: Designed to withstand significant loads, ensuring reliable performance under demanding conditions.
- Universal Head Design: Offers a wide range of attachment options, including shackle swivel, ring shackle swivel, ring, clevis ring, M6 bridge plate, carabiner swivel, wedge cleat, reefing catch, and installation for embedding.
- Sheave Protection: Equipped with flanges to protect the sheave, enhancing durability and longevity.
- Stainless Steel Axle: Load transfer is facilitated through a stainless steel axle, providing strength and resistance to corrosion.
- Adjustable Cleats: Features adjustable cleats for secure rope handling and easy adjustments.
Technical Specifications:
- Sheave Diameter: 45 mm
- Maximum Rope Diameter: 10 mm
- Shackle Diameter: 5 mm
- Length: 97 mm
- Width: 49 mm
- Thickness: 26 mm
- Working Load: 400 kg
- Breaking Load: 900 kg
- Weight: 103 g
Materials:
- Head Configuration: Grade 316L stainless steel
- Load Straps: Grade 316L stainless steel
- Flanges: Polycarbonate
- Saddle for Cam Models: Composite
- Ball Bearings: Delrin
- Sheave: Composite
Compatibility Information:
This pulley is compatible with ropes up to 10 mm in diameter and is suitable for various marine applications, including mainsail systems, spinnaker sheets, genoa sheets, and running backstays.
