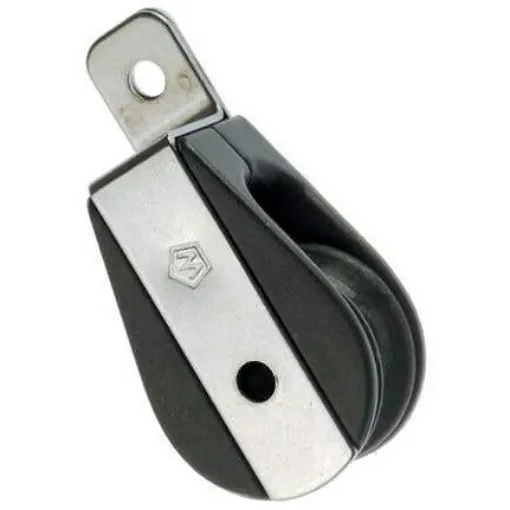

The Wichard Single Ball Bearing Pulley - Reel 25 - Flat Bridge is a high-quality, single-sheave pulley designed for marine applications, offering smooth operation and durability.
- Single Ball Bearing: Ensures smooth rotation and reduced friction.
- Flat Bridge Design: Provides a compact and lightweight solution for various rigging needs.
- Stainless Steel Construction: Made with 316L stainless steel for enhanced corrosion resistance.
- Polycarbonate Flanges: Offers strength and durability while keeping the weight low.
Technical Specifications:
- Sheave Diameter: 25 mm
- Length: 49 mm
- Width: 25 mm
- Thickness: 18 mm
- Working Load: 320 kg
- Breaking Load: 600 kg
- Maximum Rope Diameter: 8 mm
- Weight: 18 g
Materials:
- Sheave: Composite material for strength and reduced weight.
- Ball Bearings: Delrin ball bearings for smooth operation.
- Fastenings and Fittings: 316L stainless steel for superior corrosion resistance.
- Flanges: Polycarbonate for durability and lightweight performance.
Dimensions:
- Length: 49 mm
- Width: 25 mm
- Thickness: 18 mm
Compatibility Information: This pulley is suitable for use with ropes up to 8 mm in diameter and is ideal for applications such as jib sheets, boom downhauls, cunningham adjustments, and mainsail sheet rails on light sails. For cruisers, it can be used for barber-haulers and various other settings.
