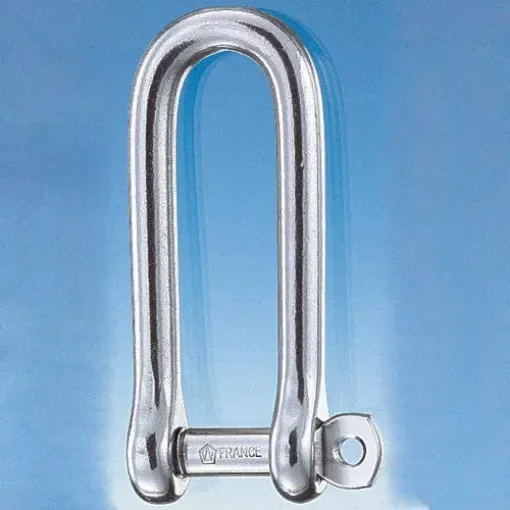

Key Features:
- Self-Locking Mechanism: The pin is securely locked into one of the indentations, preventing accidental unscrewing due to vibrations.
- High-Quality Material: Forged from 316L stainless steel, offering excellent corrosion resistance in marine environments.
- Versatile Applications: Suitable for various nautical applications, including attachment of blocks, heads, and other fittings.
- CE Marking: Indicates compliance with European safety standards.
Technical Specifications:
- Material: 316L Stainless Steel
- Working Load Limit (WLL): 320 kg
- Breaking Load: 700 kg
- Weight: Approximately 8 grams
- Dimensions:
- A (Length): 32 mm
- B (Width): 22 mm
- C (Pin Diameter): 4 mm
- D (Shackle Diameter): 8 mm
- E (Internal Width): 8 mm
- F (Internal Length): 32 mm
- G (Internal Height): 22 mm
Materials:
- Shackle Body and Pin: 316L Stainless Steel
Dimensions:
- Length (A): 32 mm
- Width (B): 22 mm
- Pin Diameter (C): 4 mm
- Shackle Diameter (D): 8 mm
- Internal Width (E): 8 mm
- Internal Length (F): 32 mm
- Internal Height (G): 22 mm
Compatibility Information:
This shackle is designed for use in various nautical applications, including the attachment of blocks, heads, and other fittings. Its self-locking mechanism ensures secure connections, reducing the risk of accidental release due to vibrations.
