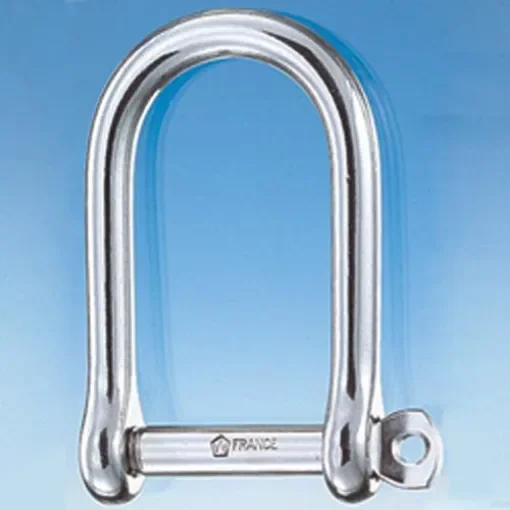

The Wichard Self-Locking Large Opening Shackle is a high-quality marine hardware component designed to provide secure and reliable connections in various applications. Forged from grade 316L stainless steel, this shackle offers exceptional resistance to corrosion, making it ideal for marine environments.
- Self-Locking Mechanism: The pin is locked into one of the indentations, preventing accidental unscrewing due to vibrations.
- High Load Capacity: Designed to withstand significant loads, ensuring safety and durability.
- CE Marking: Indicates compliance with European safety standards.
Technical Specifications
| Diameter | Working Load (kg) | WLL (kg) | Breaking Load (kg) | Weight (g) | Dimensions (mm) |
|---|
| 5 mm | 330 | 220 | 1100 | 16 | 36 |
| 6 mm | 450 | 300 | 1500 | 27 | 42 |
| 8 mm | 810 | 540 | 2700 | 67 | 57 |
| 10 mm | 1280 | 800 | 4000 | 127 | 72 |
Materials: Grade 316L Stainless Steel
Dimensions: Available in 5 mm, 6 mm, 8 mm, and 10 mm diameters, with corresponding dimensions as specified above.
Compatibility Information: Suitable for applications requiring a large opening shackle.
Additional Details: The self-locking mechanism ensures the pin remains securely in place, even under vibrations. The shackle is CE marked, indicating compliance with European safety standards.
