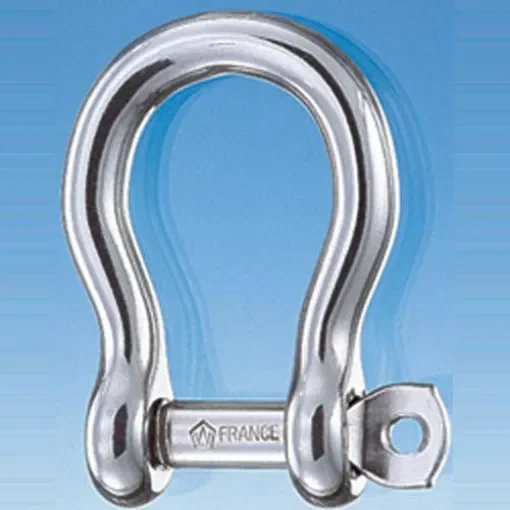

Key Features:
- Self-locking pin design to prevent accidental unscrewing due to vibrations.
- Forged from 316L marine-grade stainless steel for enhanced corrosion resistance.
- CE marking indicating compliance with European safety standards.
- Available in various sizes to accommodate different applications.
Technical Specifications:
- Working Load Limit (WLL): Varies by size; for instance, the 5 mm shackle has a WLL of 200 kg.
- Breaking Load: Also varies by size; the 5 mm shackle has a breaking load of 1,000 kg.
- Weight: Depends on size; the 5 mm shackle weighs 17 grams.
Materials:
- 316L marine-grade stainless steel, known for its superior corrosion resistance in marine environments.
Dimensions:
- Dimensions vary by size. For the 5 mm shackle:
- Length (A): 36 mm
- Width (B): 23 mm
- Pin Diameter (D): 5 mm
- Overall Height (M): 25 mm
Compatibility Information:
- Suitable for marine applications requiring secure and reliable connections.
- Available in multiple sizes to fit various line or cable diameters.
Additional Details:
- The self-locking mechanism ensures the pin remains securely in place, reducing the risk of accidental release.
- Ideal for use in environments where vibrations are present, such as on boats or industrial equipment.
