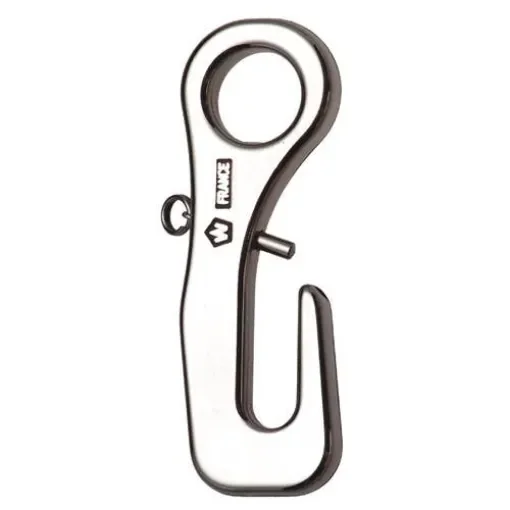

Key Features:
- Secures the anchorage by relieving tension on the anchor chain.
- Protects the boat by preventing the chain from chafing against the hull and davits.
- Locks onto the chain between two links, allowing for one-handed operation.
- Safety piston ensures the device remains in place under all circumstances.
- Made of marine-grade 316L stainless steel for maximum corrosion resistance and optimal performance.
Technical Specifications:
- Available Models:
- For 8 mm chain:
- Length: 85 mm
- Rope Passage: 16 mm
- Working Load: 480 kg
- Breaking Load: 1600 kg
- Weight: 88 g
- For 10 mm chain:
- Length: 103 mm
- Rope Passage: 20 mm
- Working Load: 720 kg
- Breaking Load: 2400 kg
- Weight: 156 g
- For 12 mm chain:
- Length: 125 mm
- Rope Passage: 23 mm
- Working Load: 960 kg
- Breaking Load: 3000 kg
- Weight: 304 g
Materials:
- Constructed from marine-grade 316L stainless steel, ensuring high resistance to corrosion and durability in marine environments.
Dimensions:
- Available in three sizes to accommodate different chain diameters:
- 8 mm chain: 85 mm length
- 10 mm chain: 103 mm length
- 12 mm chain: 125 mm length
Compatibility Information:
- Designed to fit 8 mm, 10 mm, and 12 mm anchor chains.
Additional Details:
- The safety piston mechanism ensures the Iron Hand remains securely in place during anchoring operations.
- The device is forged in France, reflecting Wichard's commitment to quality and craftsmanship.
