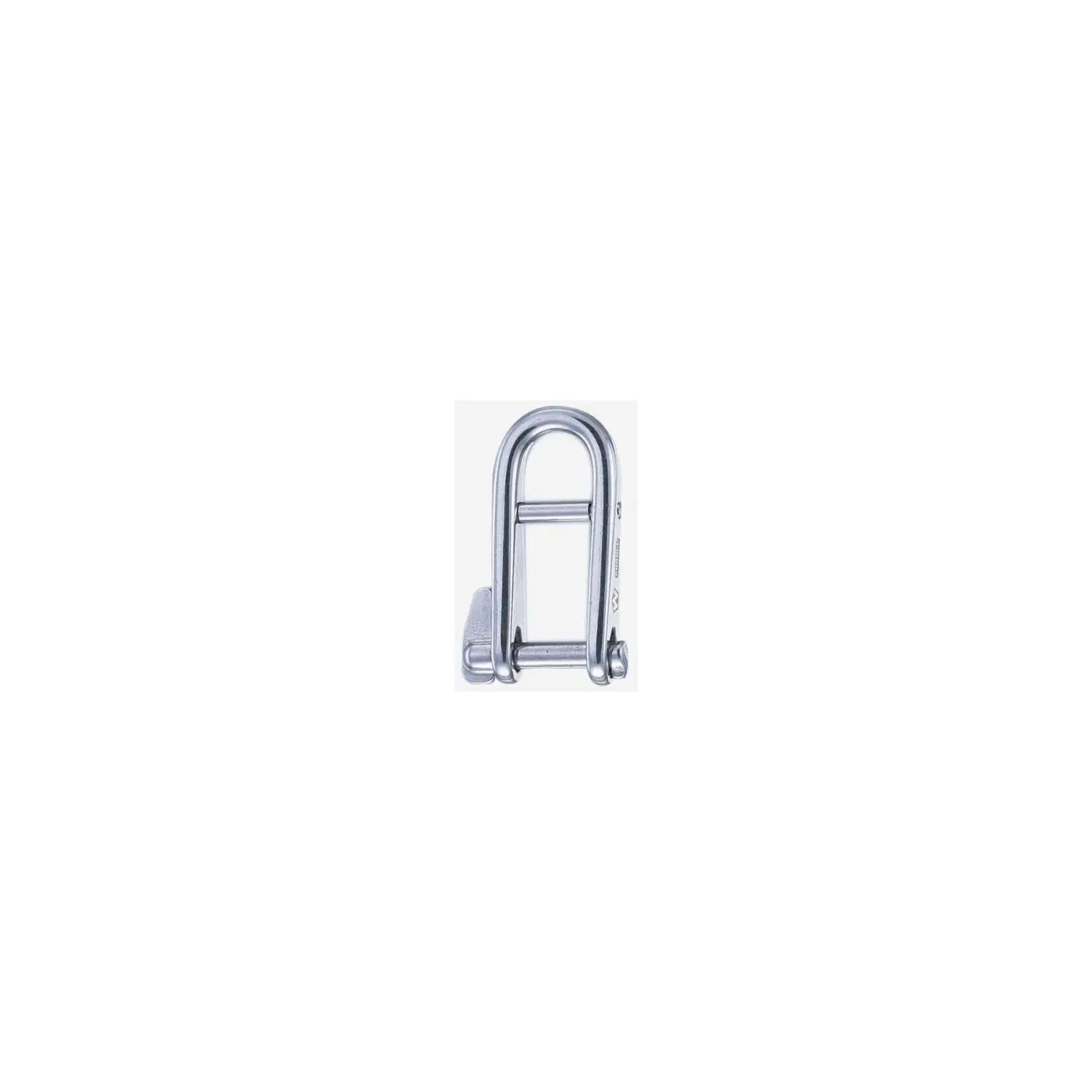

Key Features:
- Forged Construction: Crafted from grade 316L stainless steel, ensuring exceptional strength and resistance to corrosion.
- Easy Operation: Features a key pin mechanism that allows for simple opening and closing with a half-turn twist, facilitating quick and tool-free handling.
- Captive Pin Design: The pin remains attached to the shackle, eliminating the risk of misplacement during use.
- High Load Capacity: Designed to withstand significant loads, making it suitable for various marine applications.
Technical Specifications:
- Material: 316L Stainless Steel
- Working Load Limit (WLL): 520 kg
- Breaking Load: 1700 kg
- Weight: 52 g
- Dimensions:
- A: 45 mm
- B: 16 mm
- C (Pin Diameter): 6 mm
- D: 13 mm
- E: 4 mm
- F: 60 mm
- G: 37 mm
- L: 15 mm
Materials:
- Body and Pin: Forged from 316L stainless steel, offering superior strength and corrosion resistance, ideal for marine environments.
Dimensions:
- Pin Diameter (C): 6 mm
- Overall Length (F): 60 mm
- Width (B): 16 mm
- Height (A): 45 mm
Compatibility Information:
This shackle is designed for use with lines or fittings that match its 6 mm pin diameter, making it suitable for halyards or applications requiring frequent opening and closing.
Additional Details:
- Safety Factor: The safety factor is 5 times the breaking load. WLL = Breaking load / 5.
- Applications: Ideal for halyards or applications requiring frequent opening and closing of the shackle.
