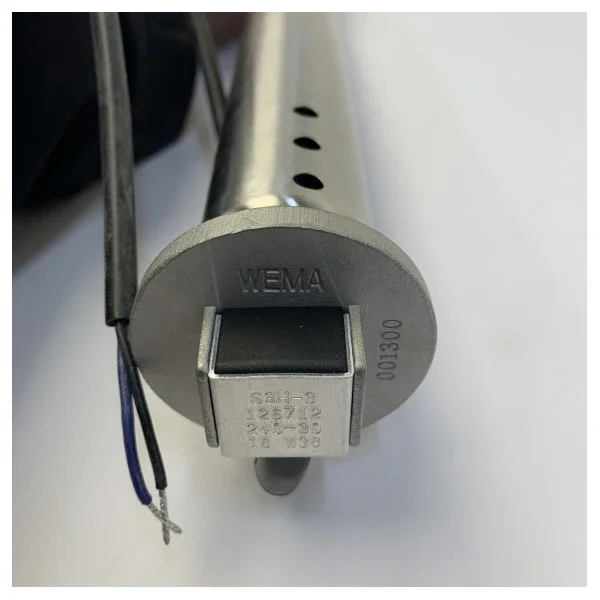

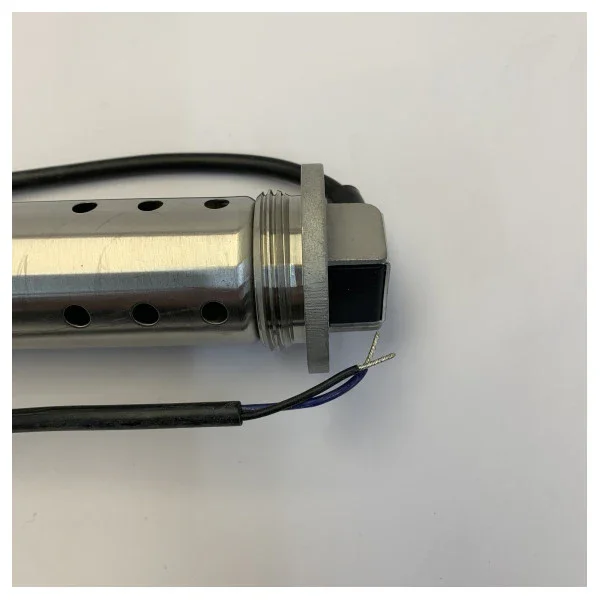

Wema RVS Fuel and Water Tank Sensor 305 mm S3H
The Wema Stainless Steel Tank Level Sensor 305 mm S3H is a high-quality float for accurately measuring the liquid level in your boat or vehicle. This sensor is made from durable stainless steel and provides a reliable solution for both fuel tanks and water tanks. Thanks to its compact and robust design, this sensor is resistant to the challenging conditions on the water.
Why choose the Wema S3H Tank Sensor?
The S3H series from Wema is known for its simplicity and long lifespan. Unlike traditional floats with a movable arm, this sensor uses a magnetic float that moves vertically along the axis. This minimizes the chance of mechanical failures and ensures a constant measurement, even during movement or vibrations.
Installation is straightforward thanks to the standard international 5-hole mounting flange. This means the sensor fits most standard tanks without the need for extensive modifications.
Key features
- High-quality material: Fully made of stainless steel (RVS) for optimal protection against corrosion.
- Universal application: Suitable for petrol, diesel, and drinking water.
- Reliable technology: Magnetic float control for trouble-free operation.
- Easy installation: Equipped with a standard flange connection for quick installation.
Technical specifications
The main data of the Wema S3H 126712 at a glance:
- Article number: 126712
- Model: S3H
- Sensor length: 305 mm (measured from the bottom of the flange to the end of the sensor)
- Resistance range: 240 to 30 Ohm (American standard, where 240 Ohm is empty and 33 Ohm is full)
- Material: Stainless steel (Stainless Steel)
- Voltage: Suitable for 12 Volt and 24 Volt systems
- Mounting: International 5-hole flange
- Protection: Fully waterproof and vibration resistant
Installation advice
When choosing the right length, ensure that the sensor hangs approximately 10 to 20 mm above the bottom of the tank. This prevents the sensor from touching the bottom and ensures the most accurate display on your dashboard instrument.
