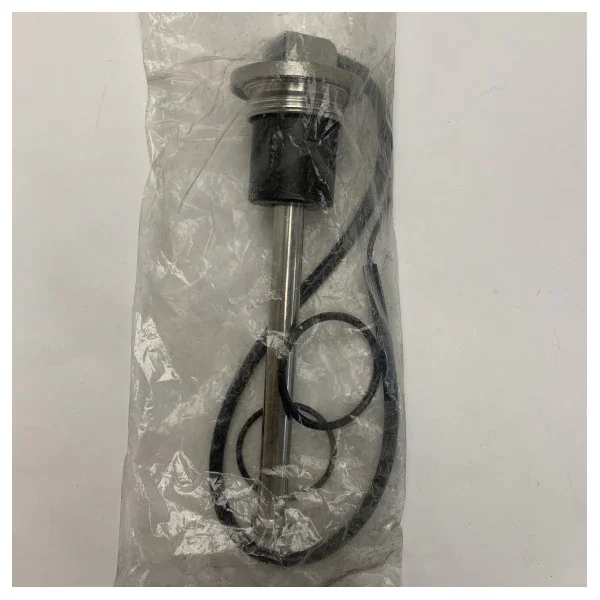

Wema S3-A180 RVS Fuel Level Sensor - American Standard
Ensure accurate and reliable measurement of your fuel or water level with the Wema S3-A180 level sensor. This model is specifically designed for tanks with a length of 180 mm and is equipped with the American resistance range of 240-30 Ohm. This allows the sensor to work perfectly with American gauges, guaranteeing a correct display of 'full' (30 Ohm) and 'empty' (240 Ohm).
Made from durable AISI 316 stainless steel, this sensor is resistant to the most demanding marine and industrial environments. The robust construction and IP67 waterproofing ensure a long lifespan and reliable performance, even under harsh conditions.
Installation is straightforward thanks to the 1 1/4" BSP thread. The sensor can be directly screwed into a tank with the appropriate thread. The included O-rings provide a perfect seal. With its contactless measurement technology and floating float with magnet, the Wema S3-A180 offers a high degree of precision and is less susceptible to interference than traditional float-arm sensors.
Whether you are looking for a replacement or want to install a new measurement system, this Wema level sensor is the ideal choice for a reliable and durable solution.
Features & Specifications
- Model: Wema S3-A180
- Length: 180 mm
- Resistance: 240-30 Ohm (American standard)
- Material: AISI 316 stainless steel
- Voltage: Suitable for 12V and 24V systems
- Connection: 1 1/4" BSP thread
- Protection: IP67 certified (waterproof and dustproof)
- Application: Suitable for fuel, water, and diesel tanks
- Installation: Easy mounting with O-rings for a liquid-tight seal
- Reliability: Contactless measurement with magnet and reed switches for high accuracy
