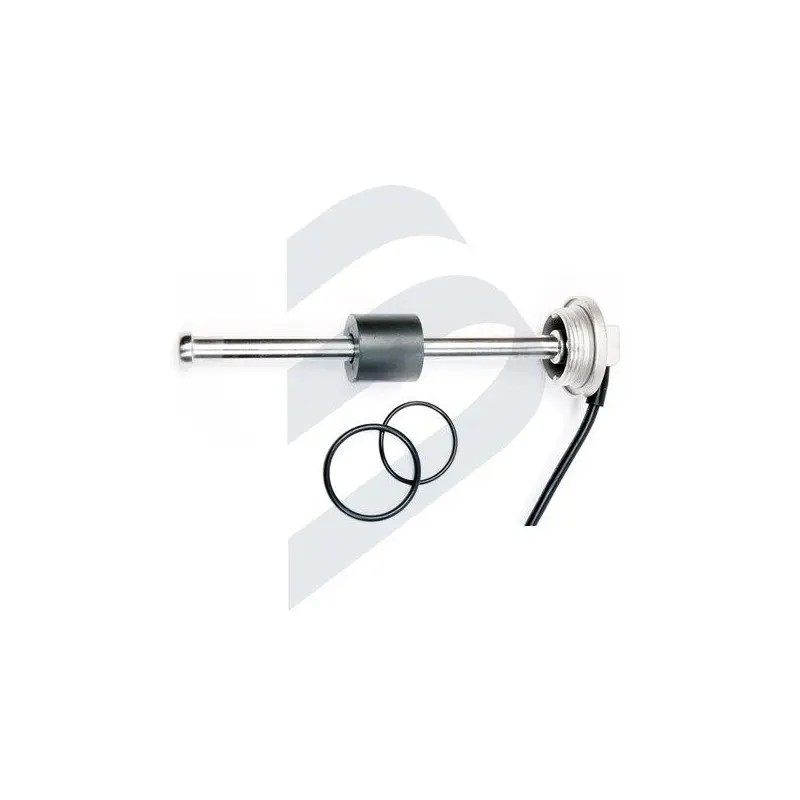

The Wema S3 gauge is a high-precision component designed to monitor fuel or water levels in boat tanks. With a length of 1000mm and a resistance range of 0-190 Ohm, this model is compatible with most standard nautical indicators or universal systems.
Compatibility and Applications
- Suitable for fuel, fresh water, or grey water tanks in recreational and professional boats.
- Compatible with most standard indicators (0-190 Ohm).
- Can be installed in metal or plastic tanks.
Advantages
- Stable and precise level measurement under any navigation condition.
- Easy installation via standard SAE 5-hole flange.
- Robust reed mechanism against vibration and waves.
- Double seal to prevent leaks and water ingress.
Material and Durability
- Tube made of AISI 316 stainless steel for maximum marine corrosion resistance.
- Internal components sealed and protected against salty and aggressive environments.
Maintenance and Recommendations
- Regularly inspect electrical connections to prevent false readings.
- Replace the seal if moisture or leaks are detected.
Technical Characteristics Table
| Length | 1000 mm |
|---|
| Resistance range | 0-190 Ohm |
|---|
| Tube material | AISI 316 stainless steel |
|---|
| Thread/base | Standard SAE 5-hole flange |
|---|
| Compatibility | 0-190 Ohm indicators |
|---|
| Brand | Wema |
|---|
