Weller MG130, 230V Solder Fume Extractor, Fine Dust Filter F7; HEPA Filter H13 & Wide Band Gas Filter, 100W, Type F - - 130-1055-ESDN

Model Number = MG130
Pre Filter Type = F7
Filter Type = Gases, Solvents, Welding Fumes
Noise Level = 52dB(A)
Voltage Rating = 230V
Wattage = 100W
Weight = 11kg
Plug Type = Type F - Schuko plug, Type G - British 3-pin
Depth = 210mm
Height = 500mm
Width = 460mm
Filter Full Alarm = Yes
Maximum Airflow Rate = 140m³/h
Speed Setting = Oui
Extraction Type = Volume

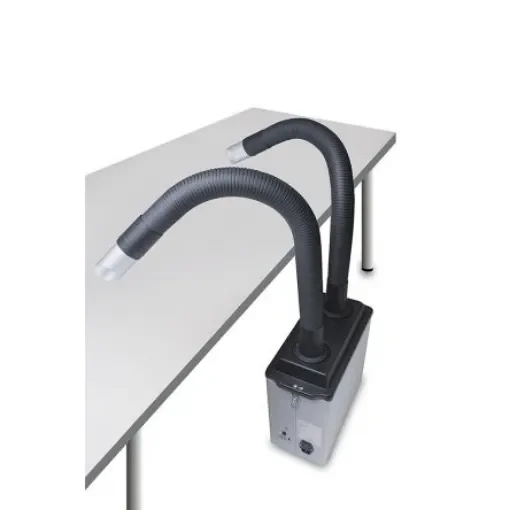

Weller MG 130 Fume Extraction Nozzle Kit. The MG 130 extraction nozzle kit is an easy to install volume fume extraction system for up to two workplaces. The extraction unit is suitable for various applications including hand soldering, heavy duty and general soldering, gluing, cleaning, filling, fine dust, MEK and cleanroom. With a compact footprint, filter alarm including 3 step up speed control and a maximum extraction rate of 140m3/h wish is an ideal solution for your working environment. The MG 130 includes a compact filter, a H13 particle filter and a wide band filter which is 50% active carbon and 50% chemisorb. The nozzle kit is supplied in two pieces including one metre flexible extraction arms and metal sloped nozzle of 130mm. The extraction arms are fixed directly onto the extraction unit and placed close to your workbench. FEATURES and BENEFITS: Voltage 100 to 240 V 50 to 60 Hz Heating output 100 W Capacity 140 m3/h Sound level 48 db(A) 1 to 2 workstations Pre-filter 130-2010 Mail filter 130-2000 ESD Pre-filter mat class F7 Width 460 mm Depth 210 mm Height 500 mm Weight 11 kg INCLUDED: MG 130 Fume extraction Unit Compact filter H13 particle filter Wide band filter 50% Carbon, 50%Chemisorb Pre-filter F7 Two flexible arms Two ALFA nozzles
