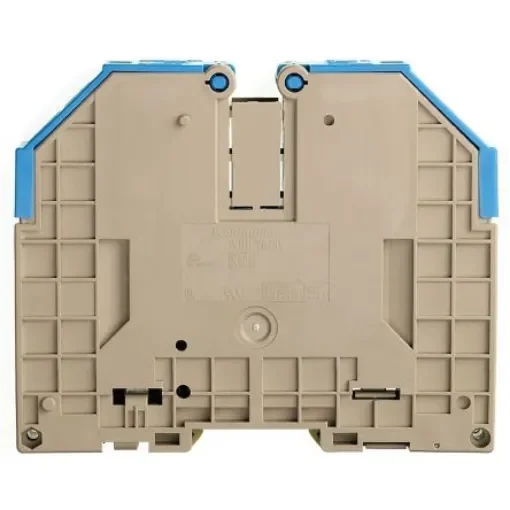

Weidmuller 1024680000 WDU Series Blue, 95mm², Single-Level, Screw Termination
The Weidmüller WDU Series terminal block offers a heavy-duty screw termination for reliable connections.
Manufacturer part number: 1024680000
GTIN: 4008190179540
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Colour = Blue
Number of Levels = Single
Voltage Rating = 1 kVAWG
Termination Method = Screw
Cable CSA = 95mm²
Current Rating = 232A
Minimum Operating Temperature = -50°C
Maximum Operating Temperature = +120°C
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR. Heavy Duty. Heavy duty feed-through terminals eliminates the need to force large-size conductors into the clamping point. The conductors can simply be placed in the terminal block. Constant force transmission by self adjusting connection system. Beneath the hinged terminal cover, a rising clamp terminal is adjusted via a 6 mm hex socket head. Features and Benefits. Safe from finger-touch (VBG 4) Extreme distortion resistance Terminal blocks can be screwed directly to mounting plates
