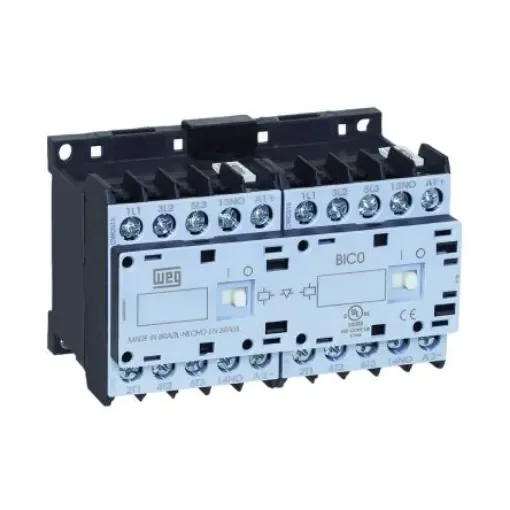

WEG CWCI0 Reversing Contactor, 110 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac - CWCI09-01-30D13
Reliable WEG reversing contactor for efficient motor control at 110V AC.
Manufacturer part number: CWCI09-01-30D13
GTIN: 7909265870591
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 110 V ac
Number of Poles = 3
Contact Voltage Rating = 690 V ac
Contact Current Rating = 9 A
Power Rating = 4 kW
Function = Reversing
Normal State Configuration = 3NO
Number Of Auxiliary Contacts = 1
Terminal Type = Screw
Length = 58mm
Depth = 59mm
Minimum Operating Temperature = -25°C
CWC Series. Professional range of WEG contactors from the CWC Series designed for switching of electric motors. The contactors are modular and compact but at the same time robust and highly reliable. Built and tested according to IEC/EN60947 and DIN VDE 0660. Direct mounting capabilities. The controllers include contactors and reversing contactors. AC/DC Operated Screw Terminals DIN Rail or Panel Mount Compact space saving design Built in auxiliary contacts
