Weatherdock easyDVB T Receiver Unit: Television on Board with Your Existing VHF Antenna
With the Weatherdock easyDVB T Receiver Unit, you can turn your existing VHF marine antenna into a powerful receiver for digital television (DVB T) on board. This active antenna splitter with integrated amplifier ensures that you can use your marine radio, your DVB T receiver, and possibly an FM radio without interference, all with just one (1) antenna. Thanks to the high sensitivity across the entire frequency range, you can enjoy optimal reception of TV signals, even in areas with lower signal strength.
The easyDVB T separates the different frequency bands and amplifies the UHF television signal, which is crucial for the proper functioning of your digital TV receiver. At the same time, the system suppresses interference, such as that from battery chargers on the FM radio. The unit is also designed so that when transmitting with the marine radio, the signal is not passed on to the TV or FM radio, ensuring safety and functionality.
Key Features
-
Antenna Splitter: Enables reception of DVB T (DTT, ATSC, TDT, ISDB) frequencies via a standard VHF antenna.
-
Integrated Amplifier: Improvement of the UHF television signal for better TV reception.
-
High Selectivity: Optimal performance across the entire frequency range.
-
FM Radio Reception: Ability to connect an interference-free FM radio via the same marine antenna.
-
Safe Use: Switches off TV and FM radio signals during VHF transmission to prevent interference.
-
Wide Power Input: Suitable for boat network voltages from 9VDC to 28VDC.
Specifications

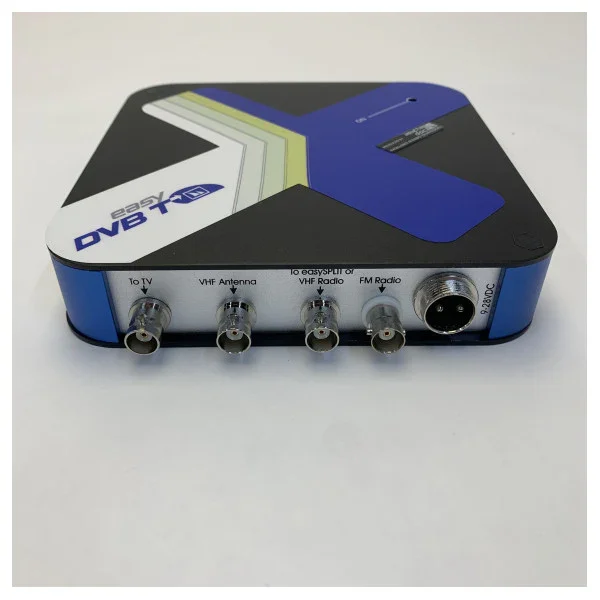

The unit functions as a frequency splitter with specific connections: 1 Transmit/Receive connection for the VHF Radio, 1 DVBT receiver connection, and 1 FM radio connection.
-
VHF Antenna Connection: 50 Ohm, BNC
-
VHF Radio (IN/OUT) Connection: 50 Ohm, BNC
-
DVBT Receiver Connection: 75 Ohm, BNC
-
FM Radio Connection: 50 Ohm, BNC
-
Connection Voltage: 9VDC to 28VDC, with a power consumption of <120mA
-
Environmental Conditions: Suitable for use below deck, from 0°C to 60°C
-
Dimensions (L x W x H): 140 mm x 140 mm x 35 mm
-
Weight: Approximately 325 grams
Upgrade your boat with the Weatherdock easyDVB T Receiver Unit and enjoy digital television and clear FM radio, all via your existing marine antenna!
