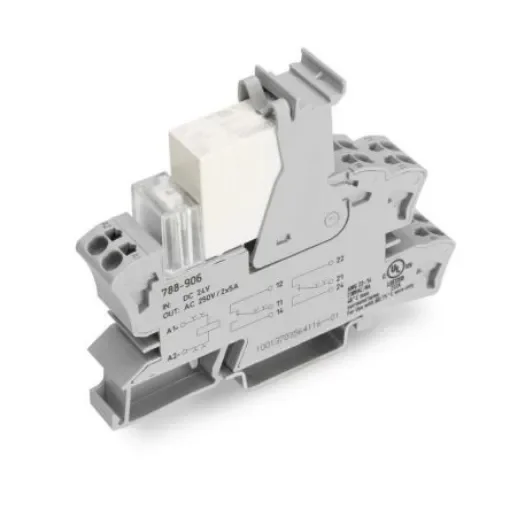

WAGO 788 Series Safety Relay, DIN Rail Mount, 24V dc Coil, 30mA Load - 788-906

Coil Voltage = 24V dc
Mounting Type = DIN Rail
Series = 788
Load Current Rating = 30mA
Terminal Type = Cage Clamp
Depth = 64mm
Height = 86mm
Length = 15mm
Contact Material = AgNi + Au
Input Current = 30mA
Dimensions = 15 x 86 x 64mm

Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 8 A, Green status indicator, Module width: 15 mmReinforced insulation between coil and contacts A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
