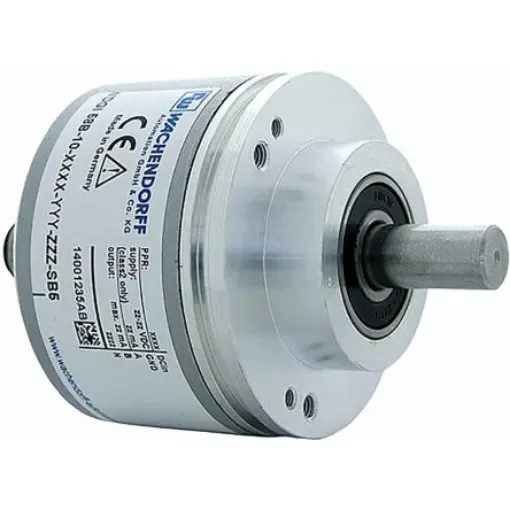

Wachendorff Incremental Incremental Encoder, 5000 ppr, RS422, TTL inverted Signal, Solid Type - WDG58B-5000-ABN-I05-K3

Encoder Technology = Incremental
Maximum Revolutions = 8000rpm
Shaft Type = Solid
IP Rating = IP65, IP67
Overall Height = 83mm
Minimum Operating Temperature = -20°C

Rotary transducer WDG58B, incremental, shaft, 58 mm. Recording of rpm, position, distance or speed Sturdy industrial aluminium housing with clamping flange High protection class according to DIN 40 050: IP65 (shaft), IP67 (cover) Very high axial and radial loads Early warning output Highly precise chip analysis Standards: DIN VDE 0160
