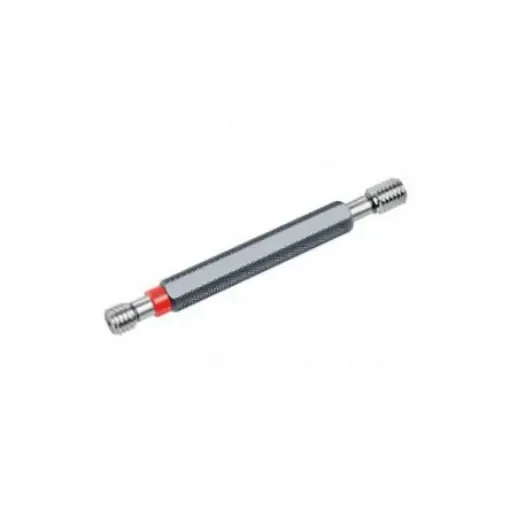

Volkel M6 x 1 Plug Thread Gauge Plug Gauge, 1mm Pitch Diameter, PreCal - 16019 +Cal

Plug/Ring = Plug
Gauge Type = Plug Thread Gauge
Go / No Go = Go/No Go
Thread Size = M6 x 1
Pitch Diameter = 1mm
Tolerance = 6H
Single or Double Ended = Double
Imperial or Metric = Metric
Calibrated = PreCal

A thread limit plug gauge is a combination of go plug gauge and no-go plug gauge. The scrap side of the thread plug gauge is marked with a red ring. The go end of the thread plug gauge must screw into the thread cut into a part by hand (without using excessive force). If unable to do so, the thread does not meet the requested standards (=scrap). The scrap side of the thread plug gauge must not be able to be manually turned more than two turns into the cut thread (without using excessive force). If it can be screwed in more, the thread does not meet the requested standards (=scrap). The reference temperature for parts and gauges is 20° Celsius. Calibrated at a measurement laboratory separate from VÖLKEL. Calibrated using IAC thread scanners.
