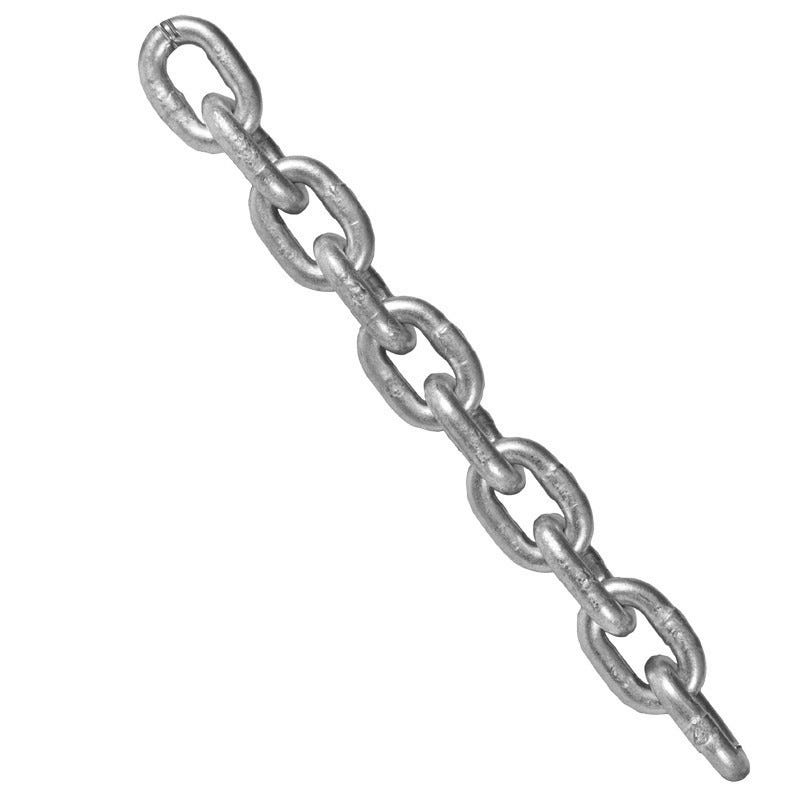

The VIGOUROUX Galvanized Calibrated Chain is specifically designed for use with windlasses, ensuring optimal performance and durability. Manufactured in France, this chain adheres to the ISO 4565 and DIN 766 standards, making it compatible with various windlass brands, including Lewmar, Quick, Lofrans, Italwinch, and Plastimo.
- Galvanized Steel Construction: Provides enhanced corrosion resistance, extending the chain's lifespan in marine environments.
- Calibrated Design: Ensures uniform dimensions for smooth operation with windlasses.
- Standard Compliance: Meets ISO 4565 and DIN 766 standards, ensuring compatibility with a wide range of windlass models.
Technical Specifications:
- Diameter: 7 mm
- Weight per Meter: Approximately 1.1 kg
- Breaking Load: Approximately 2,549 kg
- Length Options: Available in 5-meter increments up to 50 meters, and 10-meter increments from 60 to 100 meters.
Materials:
- Chain Material: Hot-dip galvanized steel
Dimensions:
- Link Dimensions: Inner length: 18 mm; Inner width: 7 mm; Outer width: 20 mm
Compatibility Information:
This chain is compatible with windlasses from brands such as Lewmar, Quick, Lofrans, Italwinch, and Plastimo.
Usage Precautions:
- Replacement Criteria: Replace the chain if it has lost more than 10% of its nominal diameter or exhibits pronounced oxidation (red rust) and flaking.
- Maintenance Recommendations: Rinse the chain with fresh water after each use. Clean the anchor locker and allow it to dry annually. Rotate the chain at the end of each season. Check the condition of the anodes. Ensure there are no electrical leaks from the windlass. Avoid chafing. Steer clear of polluted areas, volcanic bottoms, algae-rich zones, and anchoring near metal masses. Do not expose the chain to acidic, abrasive, or corrosive substances.
