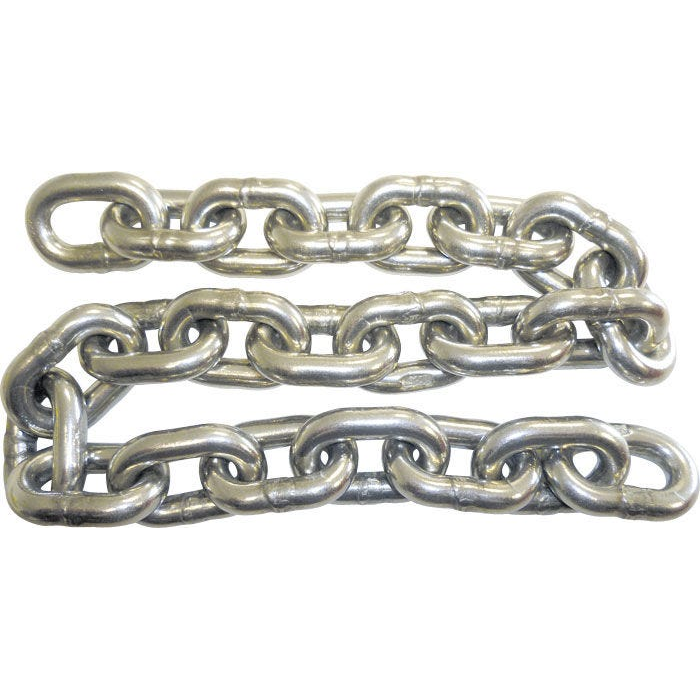

The VIGOUROUX 316 Stainless Steel Calibrated Chain with a 10 mm diameter is engineered for marine anchoring applications, ensuring durability and reliability. Manufactured in France, this chain adheres to ISO 4565 standards, making it compatible with various windlasses, including Lewmar, Quick, Lofrans, Italwinch, and Plastimo.
- Material: High-quality 316 stainless steel, offering superior corrosion resistance compared to galvanized steel.
- Standard Compliance: Manufactured according to ISO 4565, ensuring compatibility with a wide range of windlasses.
- Breaking Load: Approximately 6.2 tons, providing robust strength for anchoring needs.
- Weight: Approximately 2.3 kg per meter, balancing strength and manageability.
Technical Specifications
- Diameter: 10 mm
- Pitch (P): 30 mm
- Width (B): 35 mm
- Weight per Meter: 2.3 kg
- Working Load: 1,250 kg
- Breaking Load: 5,000 kg
- Standard: ISO
Materials
- Chain Links: AISI 316L stainless steel, known for its low carbon content and enhanced corrosion resistance.
Dimensions
- Link Dimensions:
- Pitch (P): 30 mm
- Width (B): 35 mm
Compatibility Information
This chain is calibrated to ISO 4565 standards, ensuring compatibility with windlasses from manufacturers such as Lewmar, Quick, Lofrans, Italwinch, and Plastimo. It's essential to verify the specific requirements of your windlass model to ensure optimal performance.
Usage Precautions
- Maintenance:
- Rinse the chain with fresh water after each use to remove salt and debris.
- Clean the anchor locker and allow it to dry annually.
- Rotate the chain at the end of each season to promote even wear.
- Inspect the condition of the anodes regularly.
- Ensure there are no electrical leaks from the windlass.
- Operational Considerations:
- Avoid chafing by ensuring the chain runs smoothly through the windlass and anchor locker.
- Steer clear of polluted areas, volcanic bottoms, and regions with algae proliferation when anchoring.
- Do not expose the chain to acidic, abrasive, or corrosive substances.
