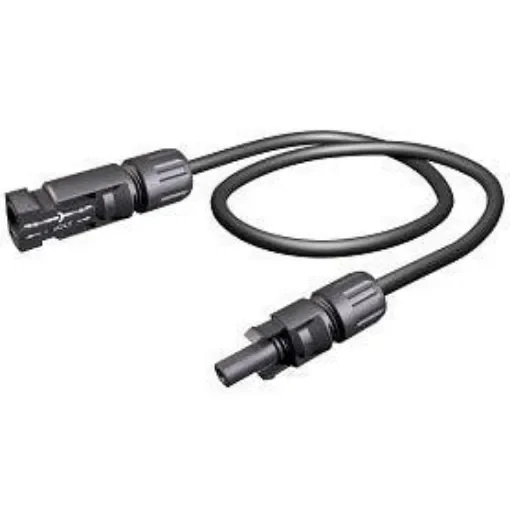

The MC4 Solar Extension Cables with Connectors are designed to facilitate the connection of Victron Energy BlueSolar Series 4A Monocrystalline Solar Panels to other system components, such as charge controllers and inverters.
- High-Quality Connectors: Equipped with MC4 connectors, ensuring secure and reliable electrical connections.
- Flexible Installation: Available in various lengths (1m, 3m, 5m, 10m, and 20m) and wire sizes (4 mm² and 6 mm²) to accommodate different installation requirements.
- Weather-Resistant Design: Constructed with UV-resistant thermoplastic materials, providing durability and resistance to environmental degradation.
- Easy Installation: Designed for straightforward setup, minimizing the risk of disconnection and ensuring a secure connection.
Technical Specifications:
- Connector Type: Male/Female MC4 connectors
- Wire Size: 4 mm² (AWG 12) or 6 mm² (AWG 10)
- Length Options: 1 meter, 3 meters, 5 meters, 10 meters, and 20 meters
- Current Rating: 30A per connector
- Voltage Rating: 1000V DC
- Operating Temperature Range: -40°C to +85°C
- Protection Rating: IP67, providing complete protection against dust and immersion in water
- Material: UV-resistant thermoplastic
- Contact Resistance: < 5 mΩ
- Insulation Resistance: > 1000 MΩ
- Pull-out Force: > 200N
Compatibility Information:
These extension cables are compatible with Victron Energy BlueSolar Series 4A Monocrystalline Solar Panels and other solar panels equipped with MC4 connectors. They are also suitable for connecting to charge controllers, inverters, and battery systems in solar energy setups.
