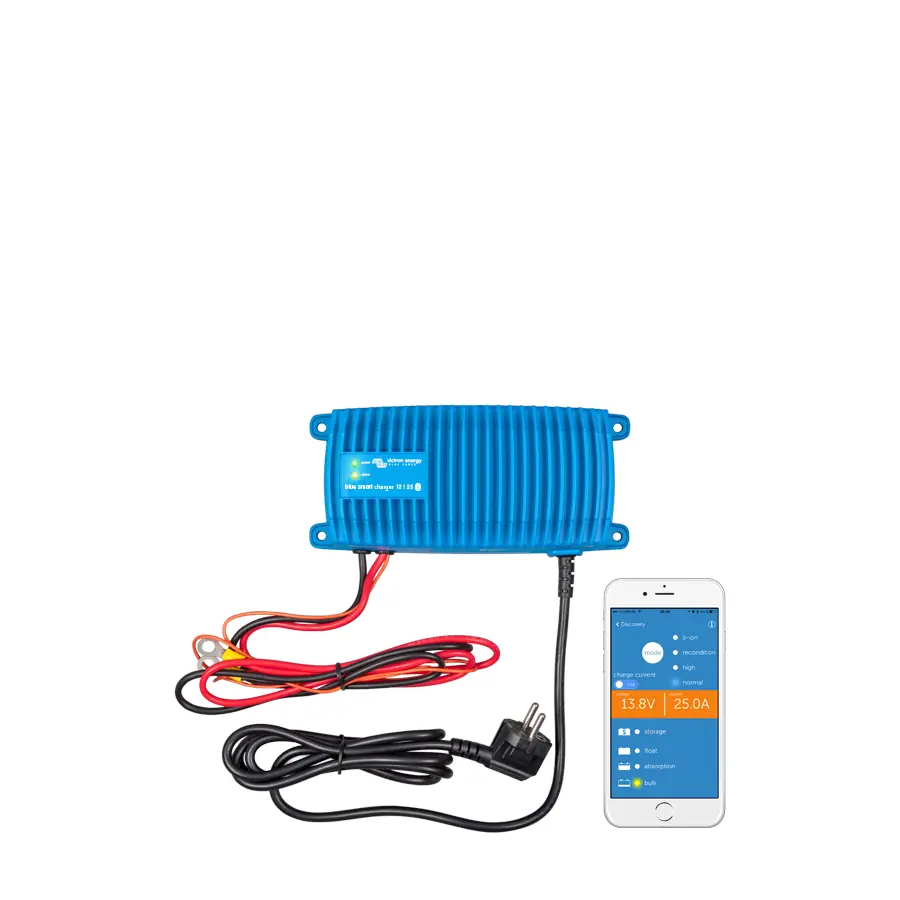

Victron Energy - IP67 Waterproof Bluetooth Charger - BPC120715106

Key Features:

• Integrated Bluetooth: Monitor voltage and current, adjust settings, and update firmware remotely via the VictronConnect app.
• Adaptive Charging Algorithm: Employs a seven-step charging process: Bulk, Absorption, Reconditioning, Float, Storage, Equalization, and Maintenance, optimizing battery health and longevity.
• Deep Discharge Recovery: Attempts to recharge deeply discharged batteries by supplying a low current until sufficient voltage is detected, then resumes normal charging.
• Storage Mode: After 24 hours of inactivity, reduces float voltage to 2.2 V/cell (13.2 V for 12V batteries) to minimize gassing and corrosion, and weekly raises voltage to absorption level to prevent electrolyte stratification and sulfation.
• Overheating Protection: Suitable for hot environments; output current reduces if temperature exceeds 60ºC, preventing failure.
• Status Indicators: Yellow LED indicates charging status (fast blinking for Bulk, slow blinking for Absorption, steady for Float), and green LED indicates power on.

Technical Specifications:

• Efficiency: Over 92%, reducing heat generation and energy consumption.
• Input Voltage: 100-135V AC
• Output Voltage: 12V or 24V, depending on model
• Output Current: Varies by model (e.g., 7A, 13A, 17A, 25A for 12V models; 5A, 8A, 12A for 24V models)
• Charging Algorithm: Seven-step adaptive charging
• Protection: Waterproof (IP67), shockproof, fireproof, and ignition protected
• Compatibility: Suitable for lead-acid and lithium-ion (LiFePO₄) batteries

Materials:

• Casing: Cast aluminum
• Electronics: Resin-molded

Dimensions:

• 12V 7A Model: 85 mm H x 211 mm W x 60 mm D
• 12V 13A Model: 85 mm H x 211 mm W x 60 mm D
• 12V 17A Model: 85 mm H x 211 mm W x 60 mm D
• 12V 25A Model: 85 mm H x 211 mm W x 60 mm D
• 24V 5A Model: 85 mm H x 211 mm W x 60 mm D
• 24V 8A Model: 85 mm H x 211 mm W x 60 mm D
• 24V 12A Model: 85 mm H x 211 mm W x 60 mm D
