Key Features:

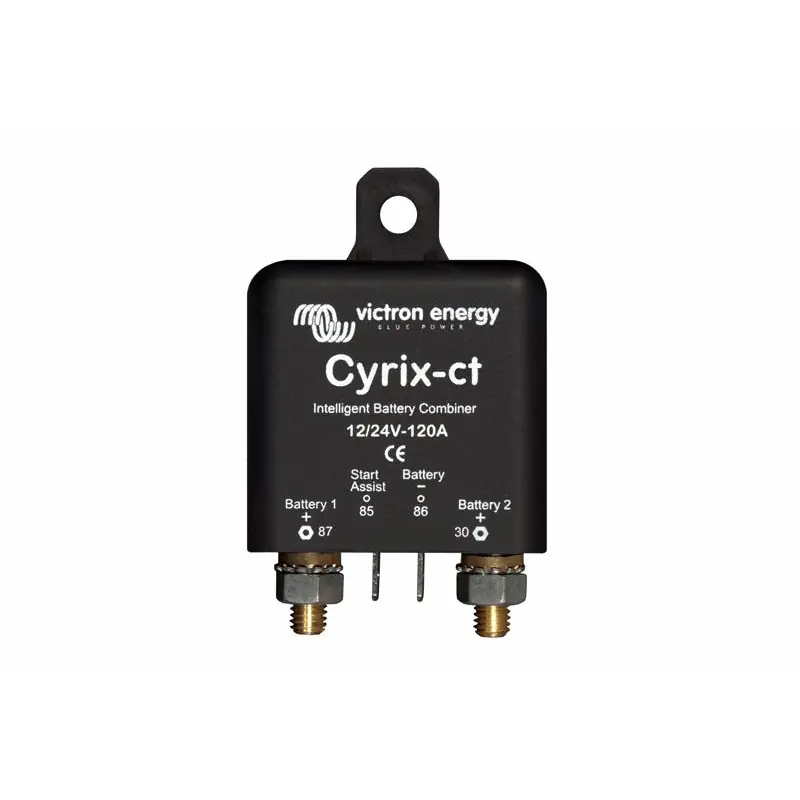

- Automatic Battery Connection: The Cyrix-ct 12/24V-120A Intelligent Battery Combiner is a microprocessor-controlled heavy-duty relay that automatically connects batteries in parallel when one reaches a pre-set voltage, indicating charging, and disconnects when the voltage drops below the float level, indicating discharge.
- Dual Voltage Detection: It monitors the voltage of both connected batteries, ensuring parallel charging when either battery is being charged.
- Minimal Voltage Loss: Designed to have virtually no voltage loss, eliminating the need to increase the output voltage of alternators or battery chargers.
- Emergency Start Assist: Features a manual override to connect batteries in parallel for 30 seconds, useful in emergencies when the starter battery is discharged.
Technical Specifications:
- Voltage Rating: Automatically detects 12V or 24V systems.
- Current Rating: 120A continuous; 180A cranking for 5 seconds.
- Connect Voltage: 13.3V to 13.8V for 12V systems; 26V to 27.6V for 24V systems.
- Disconnect Voltage: 11.0V to 12.8V for 12V systems; 22V to 25.7V for 24V systems.
- Standby Current Draw: Less than 4mA.
- Operating Temperature: -40°C to +40°C.
- Ingress Protection: IP54, suitable for harsh environments.
Materials: Constructed with high-quality materials to ensure durability and reliable performance in various environments.
Dimensions: 46mm (H) x 46mm (W) x 80mm (D).
Compatibility Information: Compatible with both 12V and 24V systems, automatically detecting the system voltage.
