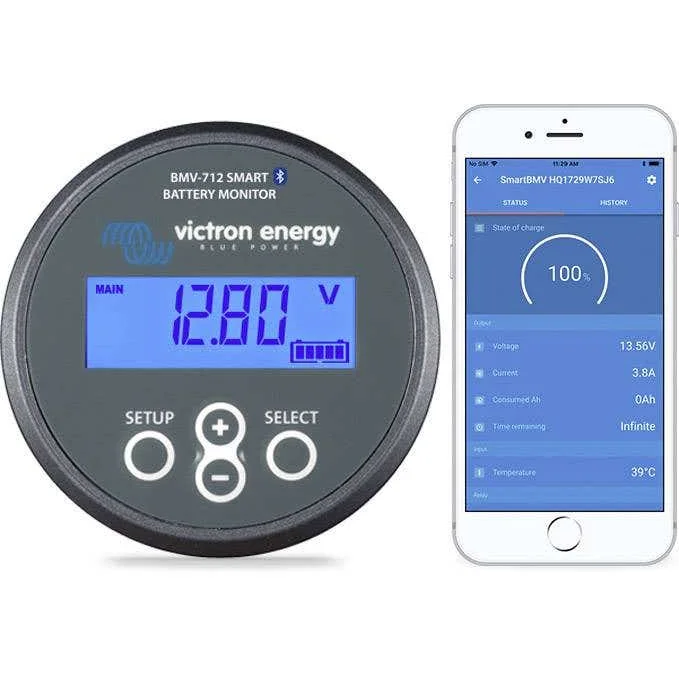

The BMV-712 Smart Battery Monitor from Victron Energy is a sophisticated device designed to provide comprehensive monitoring of your battery system. With built-in Bluetooth functionality, it seamlessly integrates with the VictronConnect app, allowing for real-time monitoring and configuration via smartphones or other Bluetooth-enabled devices.
- Real-Time Monitoring: Displays battery voltage, current, power, ampere-hours consumed, and state of charge.
- Remaining Time Estimation: Calculates remaining time at the current rate of discharge.
- Programmable Alarms: Offers visual and audible alarms for various parameters.
- Relay Functionality: Includes a programmable relay to turn off non-critical loads or to start a generator when necessary.
- Additional Input: Provides an input to measure voltage (of a second battery), temperature, or midpoint voltage, with corresponding alarm and relay settings.
- Communication Port: Equipped with a VE.Direct communication port for integration with other Victron products.
- Historical Data Storage: Stores a wide range of historical events to evaluate usage patterns and battery health.
- Wide Input Voltage Range: Supports input voltages from 6.5V to 70V.
- High Current Measurement Resolution: Offers a high current measurement resolution of 10 mA (0.01A).
Technical Specifications:
- Input Voltage Range: 6.5V – 70V
- Current Consumption: <1mA
- Mounting Hole Size: 2 inches (52mm)
- Dimensions: 63 x 63 x 31 mm (LxWxH)
- Weight: 0.74 kg
The BMV-712 Smart is constructed with high-quality materials to ensure durability and reliable performance in various environments.
This battery monitor is compatible with a wide range of battery systems, including lead-acid and lithium-ion batteries, and is suitable for both 12V and 24V systems.
