Key Features:
- Low Voltage-Temperature Coefficient: Enhances performance in high-temperature conditions.
- Exceptional Low-Light Performance: High sensitivity to light across the entire solar spectrum.
- 25-Year Limited Warranty: Coverage on power output and performance.
- 5-Year Limited Warranty: Coverage on materials and workmanship.
- Sealed, Waterproof Junction Box: Provides a high level of safety.
- High-Performance Bypass Diodes: Minimize power drop caused by shading.
- Advanced EVA Encapsulation System: Triple-layer backsheet meets stringent safety requirements for high-voltage operation.
- Anodized Aluminium Frame: Allows easy mounting with various standard systems.
- High-Quality Tempered Glass: Offers enhanced stiffness and impact resistance.
- Pre-Wired Quick-Connect System: Equipped with PV-ST01 connectors.
Technical Specifications:

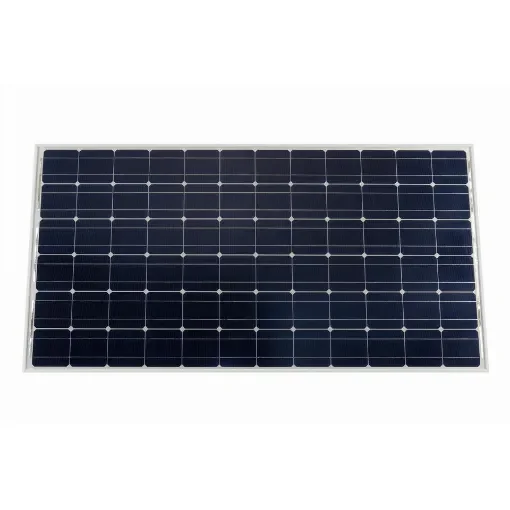

The BlueSolar Monocrystalline Solar Panels are available in various power ratings and voltages. Here are some examples:
- 40W 12V Model:
- Dimensions: 425 (L) x 668 (W) x 25 (D) mm
- Weight: 3.1 kg
- Nominal Power: 40W
- Max-Power Voltage: 18.3V DC
- Max-Power Current: 2.19A
- Open-Circuit Voltage: 22.45V DC
- Short-Circuit Current: 2.40A
- 90W 12V Model:
- Dimensions: 780 (L) x 668 (W) x 30 (D) mm
- Weight: 6.1 kg
- Nominal Power: 90W
- Max-Power Voltage: 19.6V DC
- Max-Power Current: 4.59A
- Open-Circuit Voltage: 24.06V DC
- Short-Circuit Current: 5.03A
- 140W 12V Model:
- Dimensions: 1250 (L) x 668 (W) x 30 (D) mm
- Weight: 9 kg
- Nominal Power: 140W
- Max-Power Voltage: 19.4V DC
- Max-Power Current: 7.21A
- Open-Circuit Voltage: 24.06V DC
- Short-Circuit Current: 7.61A
- 175W 12V Model:
- Dimensions: 1485 (L) x 668 (W) x 30 (D) mm
- Weight: 11 kg
- Nominal Power: 175W
- Max-Power Voltage: 19.4V DC
- Max-Power Current: 9.02A
- Open-Circuit Voltage: 24.06V DC
- Short-Circuit Current: 9.52A
- 180W 24V Model:
- Dimensions: 1485 (L) x 668 (W) x 30 (D) mm
- Weight: 11 kg
- Nominal Power: 180W
- Max-Power Voltage: 36.8V DC
- Max-Power Current: 4.89A
- Open-Circuit Voltage: 45.6V DC
- Short-Circuit Current: 5.21A
Materials:
- Frame: Anodized Aluminium
- Glass: High-Quality Tempered Glass
- Encapsulation: Advanced EVA (Ethylene Vinyl Acetate)
- Junction Box: Sealed, Waterproof, Multifunctional
