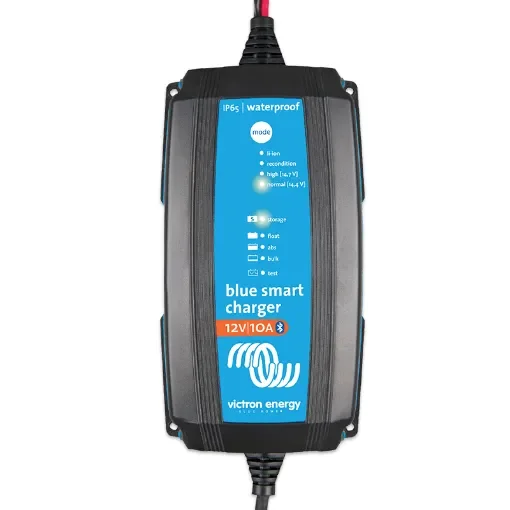

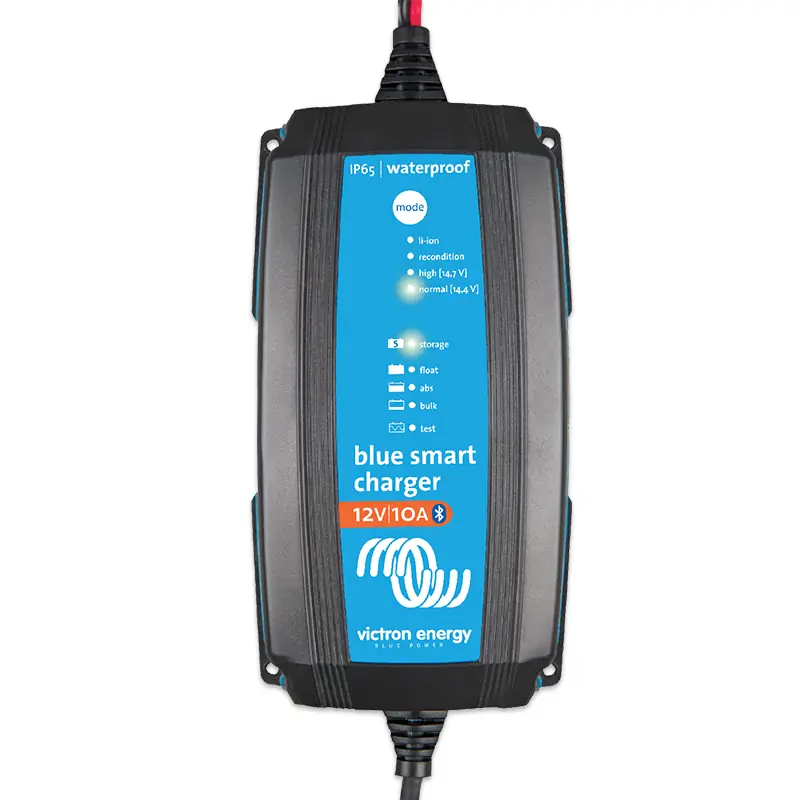

The Blue Smart IP65 Charger is a professional-grade battery charger designed for various applications, including workshops, motor vehicles, boats, and camper-vans. It features a built-in Bluetooth connection, allowing users to monitor and configure the charger remotely via the VictronConnect app on smartphones, tablets, or laptops.
- Seven-Step Charging Algorithm: Optimizes battery performance and extends lifespan by providing the necessary power and maintaining battery health.
- Deep Discharge Recovery: Attempts to recharge deeply discharged batteries by supplying a low current until sufficient voltage is detected, after which normal charging resumes.
- Easy Battery Connection: Comes with both crocodile clips and M8 eyelets, facilitating straightforward battery connections.
- Remote Monitoring and Configuration: Equipped with built-in Bluetooth, enabling remote monitoring and configuration through the VictronConnect app.
Technical Specifications:
- Input Voltage and Frequency Range: 180 - 265VAC, 45 - 65Hz
- Efficiency: 94%
- Standby Power Consumption: 0.5W
- Charge Voltage - Absorption: Normal: 14.4V, High: 14.7V, Li-ion: 14.2V
- Charge Voltage - Float: Normal: 13.8V, High: 13.8V, Li-ion: 13.5V
- Charge Voltage - Storage: Normal: 13.2V, High: 13.2V, Li-ion: 13.5V
- Max Output Current - Normal Mode: 4 / 5 / 7 / 10 / 15 / 25A
- Max Output Current - Low Current Mode: 2 / 2 / 2 / 3 / 4 / 10A
- Max Battery Capacity (Recommended): 40 / 50 / 70 / 100 / 150 / 250Ah
- Min Battery Capacity - Normal Mode: Lead-acid: 13 / 17 / 23 / 33 / 50 / 83Ah, Lithium: 8 / 10 / 14 / 20 / 30 / 50Ah
- Min Battery Capacity - Low Current Mode: Lead-acid: 7 / 7 / 7 / 10 / 13 / 33Ah, Lithium: 4 / 4 / 4 / 6 / 8 / 20Ah
- Temperature Compensation (Lead-acid Only): 16mV/°C
- Charge Algorithm: 7-stage adaptive
- Power Supply Mode: Yes
- Back Current Drain: 0.7Ah/month (1mA)
- Protection: Reverse polarity, output short circuit, over temperature
- Operating Temperature: -40 to +50°C (full rated output up to 30°C)
- Humidity (Non-Condensing): Max 95%
- Enclosure: IP65 (splash and dust proof)
- Battery Connection: 1.5-meter red and black cable
- AC Connection: 1.5m cable with CEE 7/17, CEE 7/16, BS 1363, or AS/NZS 3112 plug
- Weight: 1.9kg (for 12/25 & 24/13 models); 0.9kg (for other models)
- Dimensions (H x W x D): 12/4, 12/5 models: 45 x 81 x 182mm; 12/7, 24/5 models: 47 x 95 x 190mm; 12/10, 12/15, 24/8 models: 60 x 105 x 190mm; 12/25, 24/13 models: 75 x 140 x 240mm
