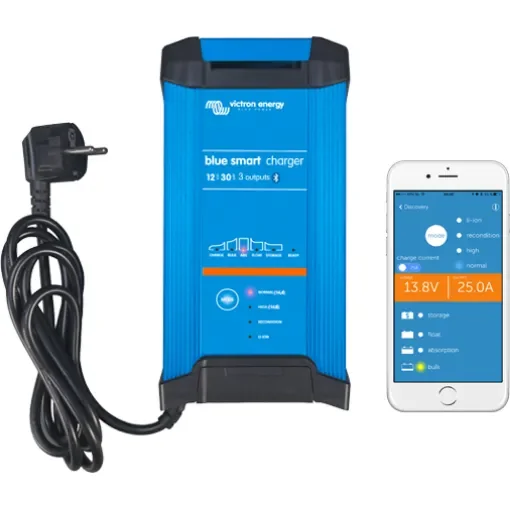

The Blue Smart IP22 Charger by Victron Energy is a high-efficiency battery charger designed for both 12V and 24V systems, available in single-output and three-output configurations. It features integrated Bluetooth connectivity, allowing users to monitor and control the charger remotely via the VictronConnect app.
- High Efficiency: Achieves up to 94% efficiency, generating significantly less heat compared to industry standards.
- Adaptive 6-Stage Charging Algorithm: Includes Test, Bulk, Absorption, Recondition, Float, and Standby stages, optimizing the charging process based on battery usage.
- Standby Mode: Activates after 24 hours of inactivity, reducing float voltage to minimize gassing and corrosion, and periodically raises voltage to prevent battery aging.
- Lithium-Ion Battery Compatibility: Supports charging of LiFePO₄ batteries using a simplified bulk-absorption-float algorithm.
- NIGHT and LOW Settings: Reduces output current to 25% of nominal and operates silently in NIGHT mode, which ends automatically after 8 hours; LOW mode can be manually stopped.
- Overheating Protection: Automatically reduces output current if the temperature exceeds 50°C, preventing damage.
- Bluetooth Connectivity: Allows remote monitoring and control via the VictronConnect app, providing access to status information, charge history, and firmware updates.
Technical Specifications:
- Input Voltage: 110 - 120 VAC (Nominal), 100 - 130 VAC (Min/Max)
- Input Frequency: 50 - 60 Hz (Nominal), 45 - 65 Hz (Min/Max)
- Power Factor: >0.6
- Standby Power Consumption: 0.5 W
- Maximum Efficiency: 94%
- Charge Voltage (Absorption): Normal: 14.4 V, High: 14.7 V, Li-ion: 14.2 V
- Charge Voltage (Float): Normal: 13.8 V, High: 13.8 V, Li-ion: 13.5 V
- Charge Voltage (Storage): Normal: 13.2 V, High: 13.2 V, Li-ion: 13.5 V
- Temperature Compensation: -16 mV/°C (-9 mV/°F)
- Charge Algorithm: 6-stage adaptive (3-stage for Li-ion)
- Charge Current Limit: Max: 15 A (12/15), 20 A (12/20), 30 A (12/30), 8 A (24/8), 12 A (24/12), 16 A (24/16)
- Maximum Battery Capacity: 150 Ah (12/15), 200 Ah (12/20), 300 Ah (12/30), 80 Ah (24/8), 120 Ah (24/12), 160 Ah (24/16)
- Minimum Battery Capacity (Lead-acid): Max: 50 Ah (12/15), 67 Ah (12/20), 100 Ah (12/30), 27 Ah (24/8), 40 Ah (24/12), 53 Ah (24/16)
- Minimum Battery Capacity (Li-ion): Max: 30 Ah (12/15), 40 Ah (12/20), 60 Ah (12/30), 16 Ah (24/8), 24 Ah (24/12), 32 Ah (24/16)
