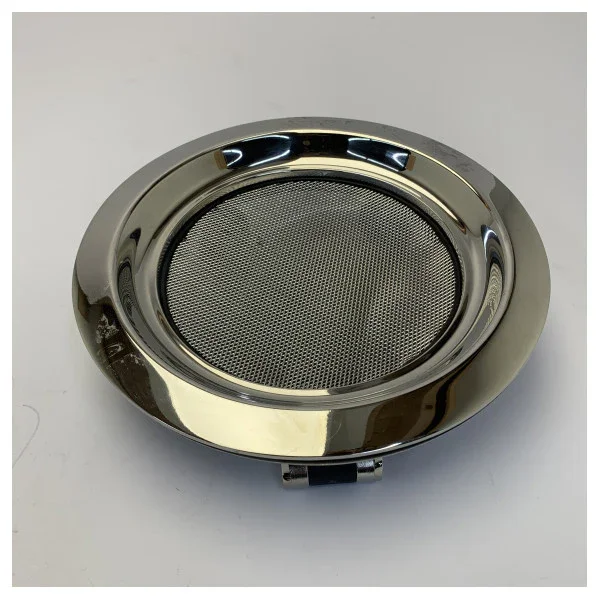

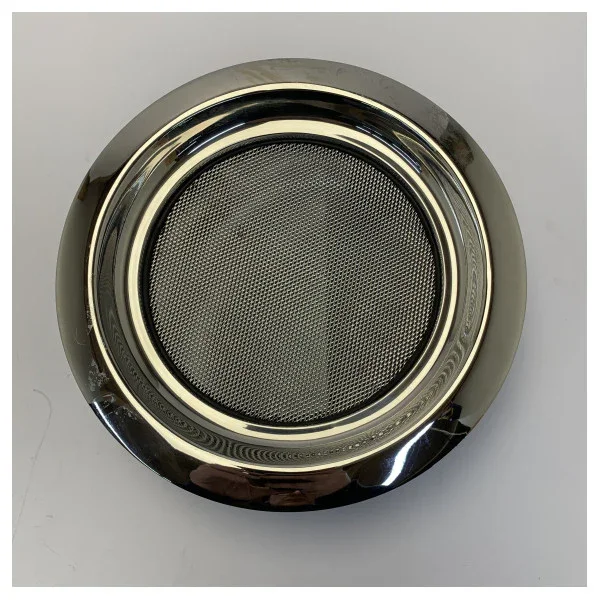

Discover the high-quality finish of the Vetus PWS31A1, a round opening porthole that combines design and functionality. This type is specially developed for use in the construction of your ship and offers a durable solution for ventilation and light entry.
Durable Stainless Steel and Ease of Use

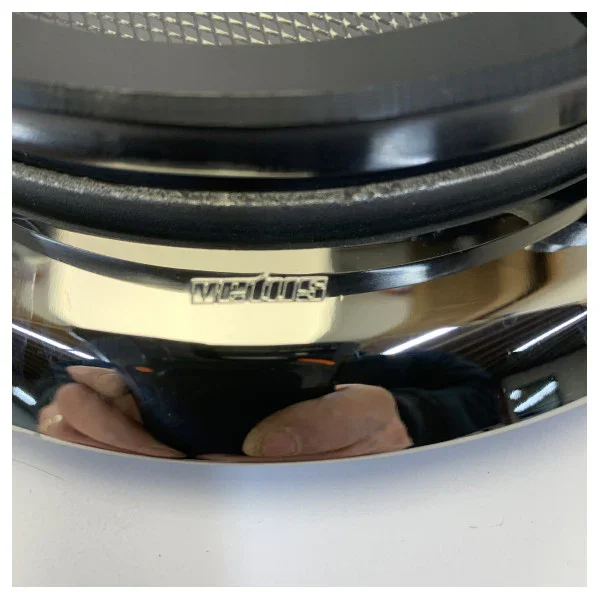

The Vetus PWS31A1 is made from high-quality stainless steel (SS), which ensures a long lifespan and excellent resistance to salty conditions on the water. The frame is carefully polished for a luxurious appearance that suits both modern and classic yachts.

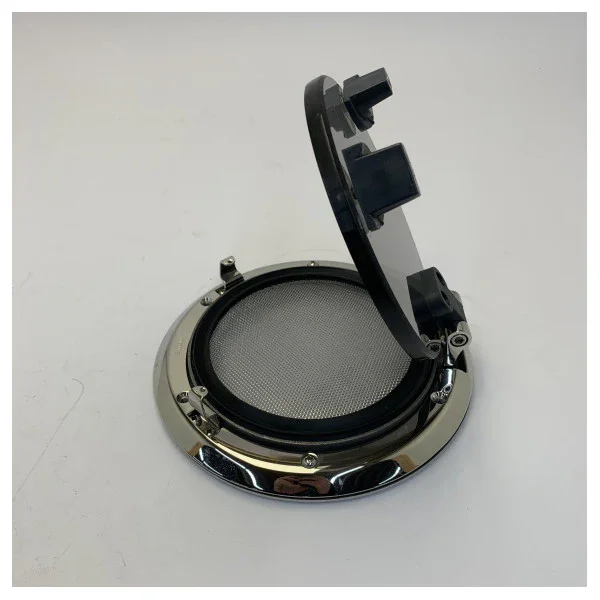

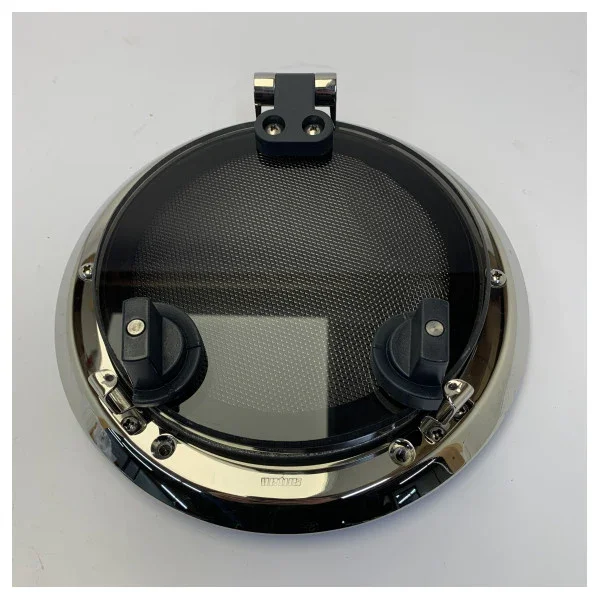

This model is equipped with convenient friction hinges. This allows the window to remain open in any desired position without the need for additional supports. The closures are easy to operate and provide a watertight seal when the window is closed.
Important Features
- High-Quality Material: Made from polished stainless steel for a corrosion-resistant result.
- Safety Glass: Fitted with 8 millimetre thick smoke grey acrylic glass for optimal safety and privacy.
- Flexible Installation: Suitable for wall thicknesses ranging from 2 millimetres to a maximum of 20 millimetres.
- Includes Mosquito Net: Comes standard with a mosquito net to keep insects out while ventilating.
- Certification: Meets strict requirements for use in shipping.
Technical Specifications
In the table below, you will find the exact dimensions and technical details of the Vetus PWS31A1:
PropertySpecificationModelVetus PWS31A1Material FrameStainless Steel (SS)Glass ColourSmoke GreyGlass Thickness8 mmOuter Diameter (A)223 mmHole Size Diameter (B)198 mmFree Opening Diameter (C)174 mmSuitable Wall Thickness2 mm to 20 mm
