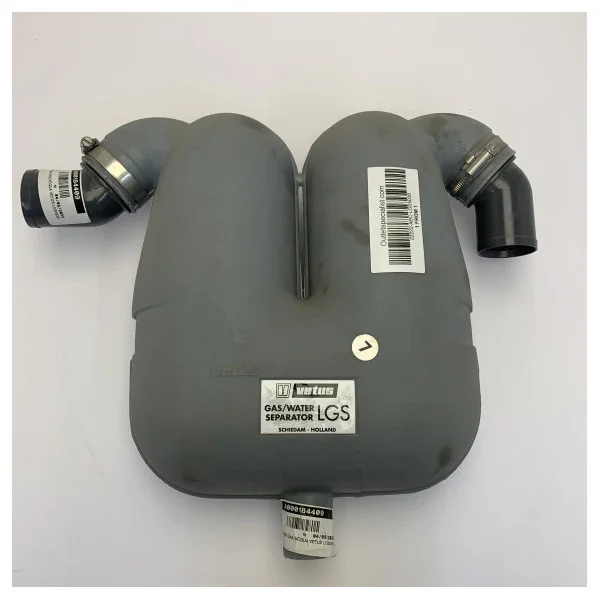

Vetus LGS5038 Gas Water Separator for Exhaust Systems
The Vetus LGS5038 is an essential addition for any modern vessel aiming for a whisper-quiet boating experience and safe exhaust gas discharge. This advanced gas water separator is specifically designed to separate the cooling water from the exhaust gases, thereby minimising the typical bubbling sound of the exhaust.
Why choose the Vetus LGS5038?
In standard wet exhaust systems, water and gas are discharged together, often causing noise and vibrations. The LGS5038 separates these flows. The water leaves the vessel below the waterline, while the dry gases are discharged above the waterline. This not only results in a significant noise reduction but also prevents the formation of black soot stains on the hull of the boat.
Key features and benefits
- Superior sound insulation: Minimises exhaust noise for greater comfort on board.
- Durable material: Made from high-quality plastics that are resistant to corrosion and high temperatures.

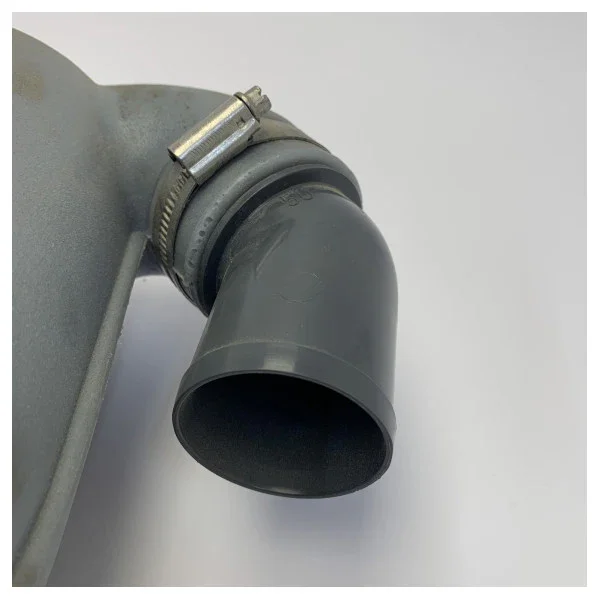

- Flexible installation: Thanks to the rotatable hose connections, installation in compact engine rooms is straightforward.
- Optimal safety: Prevents back pressure in the engine through efficient gas discharge.
Technical specifications
The Vetus LGS5038 is a versatile separator suitable for various hose diameters and engine powers. Below you will find the exact technical data integrated into this model:
- Product type: Gas water separator (LGS)
- Hose connections: Suitable for exhaust hoses with an inner diameter of 38 mm or 50 mm.
- Capacity: The separator has a total volume of 7 litres.
- Water discharge connection: A hose of 38 mm is recommended for the discharge of the separated water.
- Compatibility: Ideal for use in combination with a Vetus waterlock and gooseneck for an optimal system.
Installation tip: Ensure that the separator is always placed above the waterline for correct operation of the gravity discharge of the water.
